FEATURED EQUIPMENT
Model SLA-e
AUTOMATIC AFS CLAY WASHER
ACESSORIES
WITHOUT ACESSÓRIOS
Model AMTU-e
WET TENSILE STRENGHT TESTING
ACESSORIES
WITHOUT ACESSÓRIOS
×

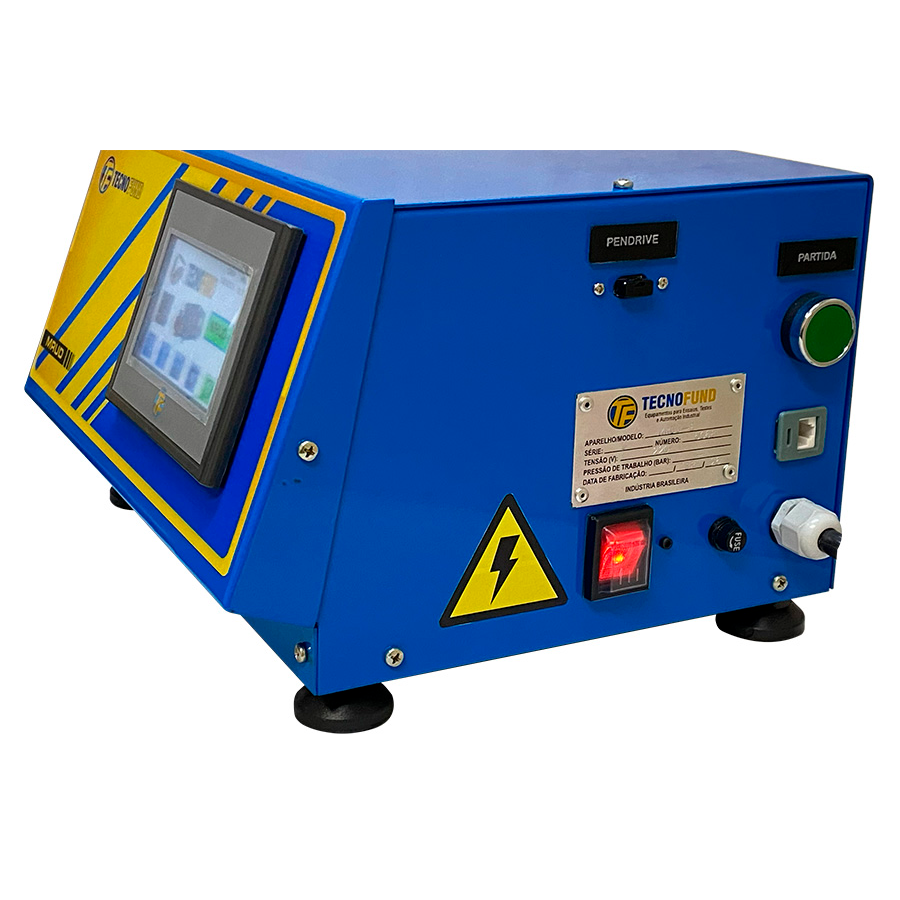

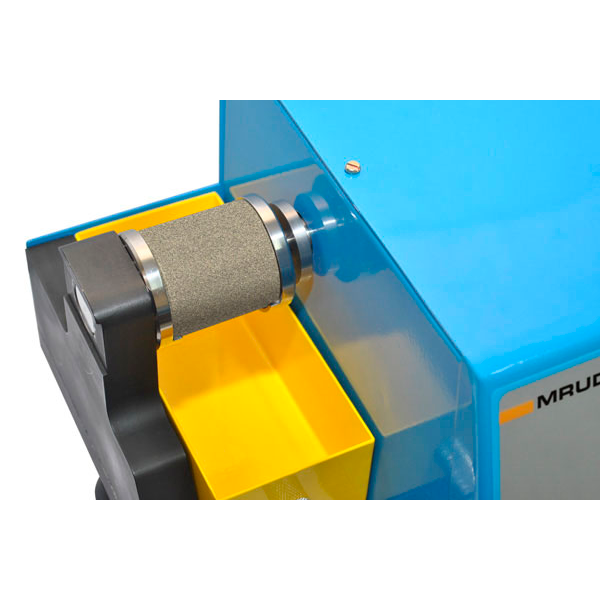

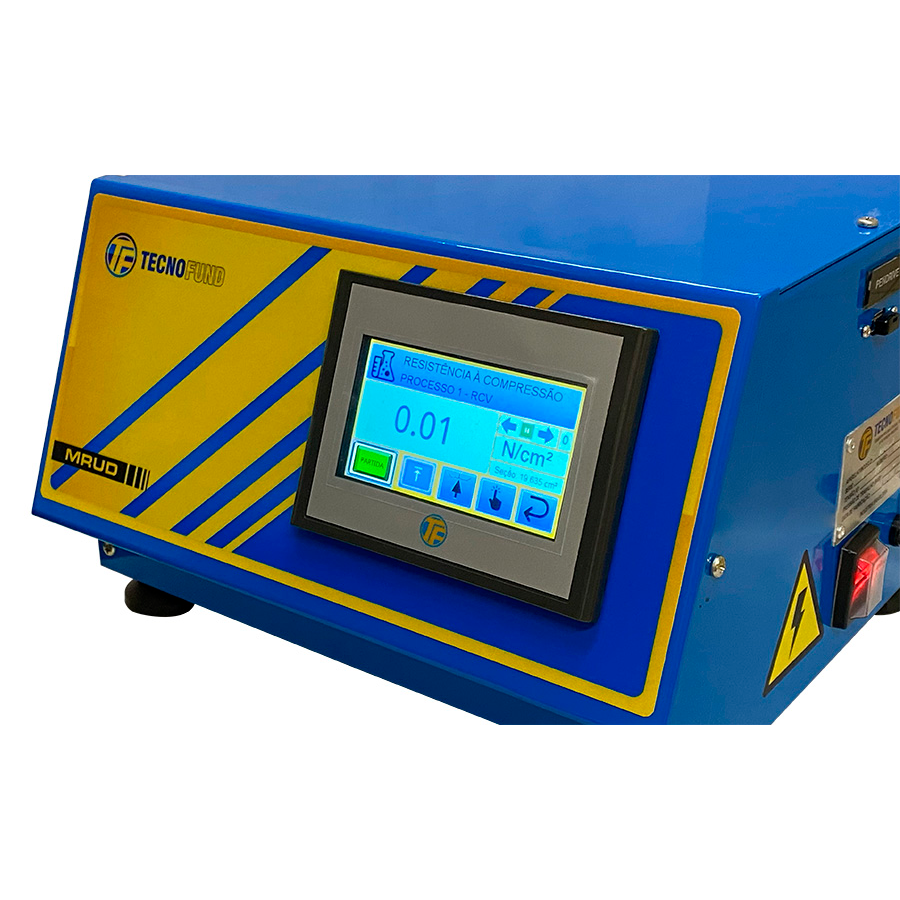

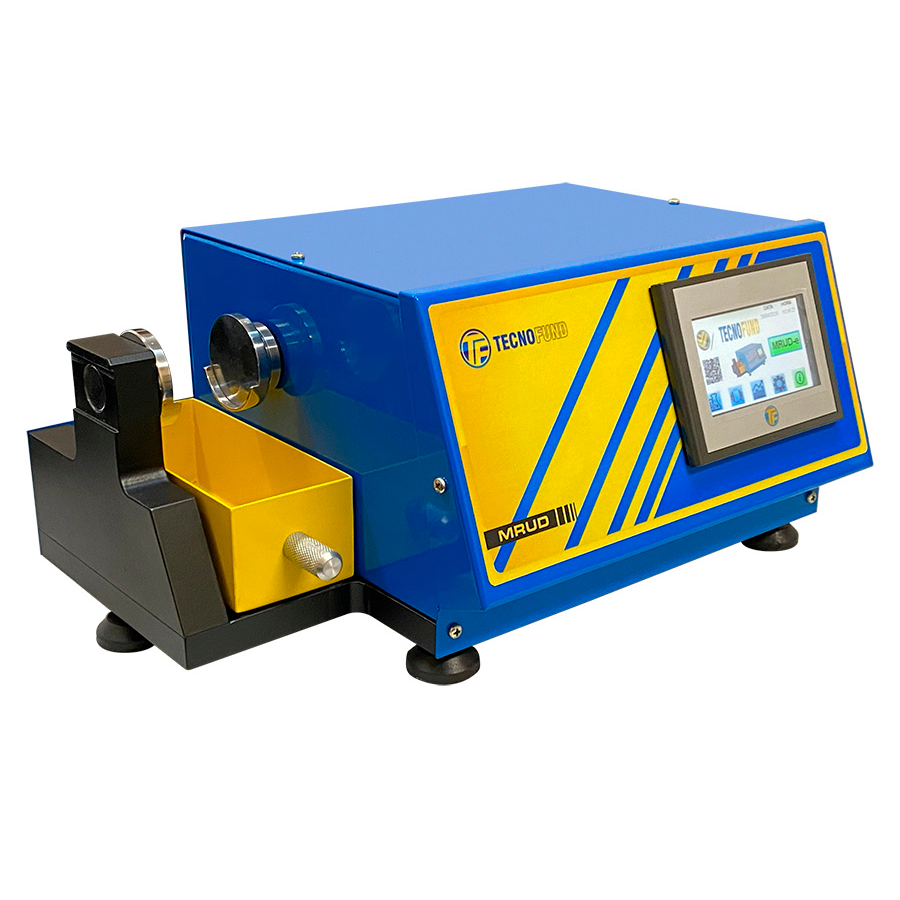

MODEL MRUD-E
SPECIFICATIONS
Performs the compression tests green.
- Measuring range: 0 – 99,00 N/cm2 (compressive strength)
- Range resolution: 0,01 N/cm2
- Uses metric ou AFS specimens
- Includes compressive strength accessories
- Power requirements: 230 V / 50-60 Hz / 150w
- Results in N/cm2, Kgf/cm2 or psi

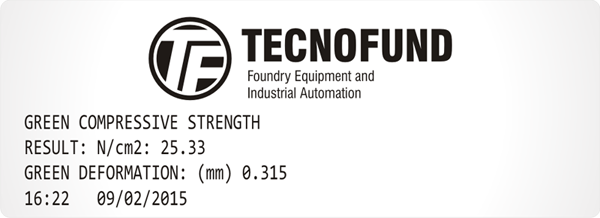

- Print data in label or sent to the PC via cable
- Dimensions: 45 x 25 x 23cm
- Weight: 26 kg (57 lb)
OPTIONAL PRINTER (self adhesive label Model)
×

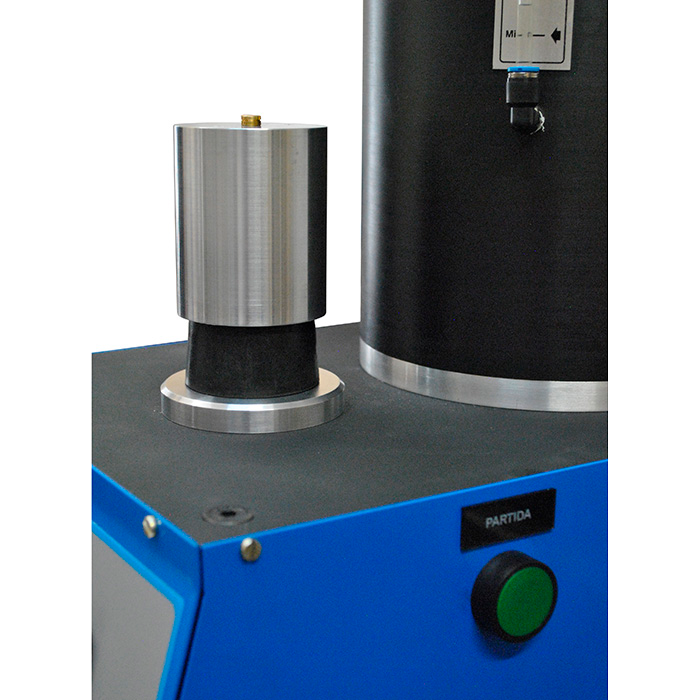

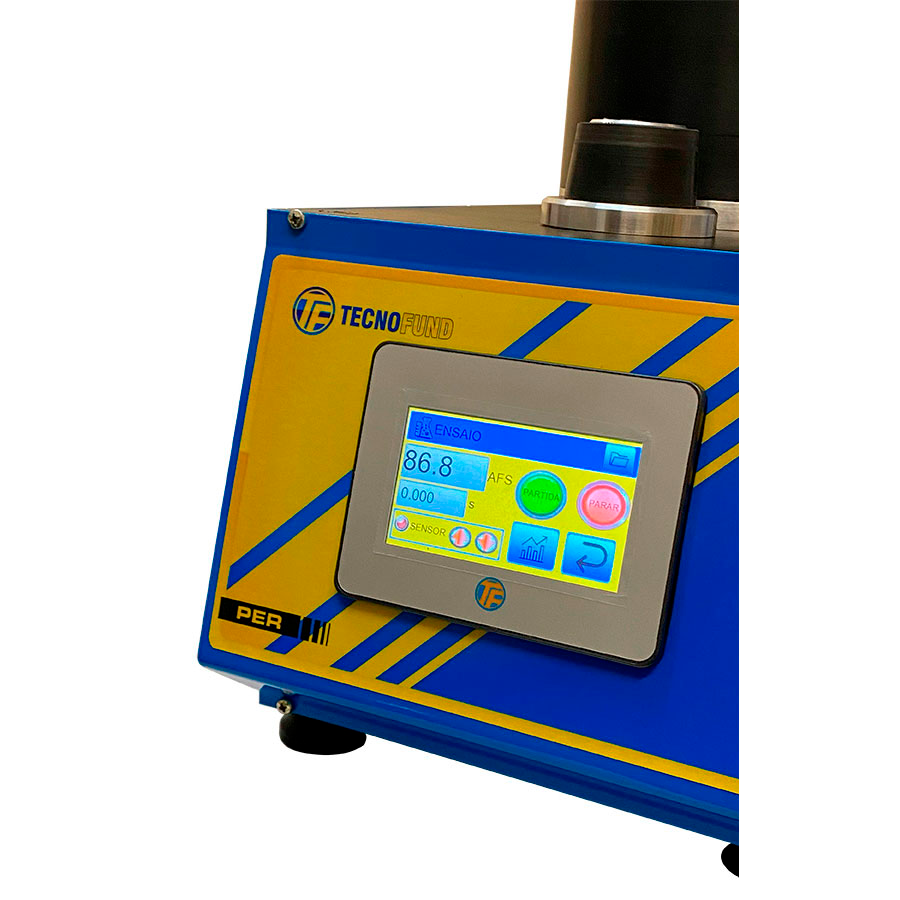

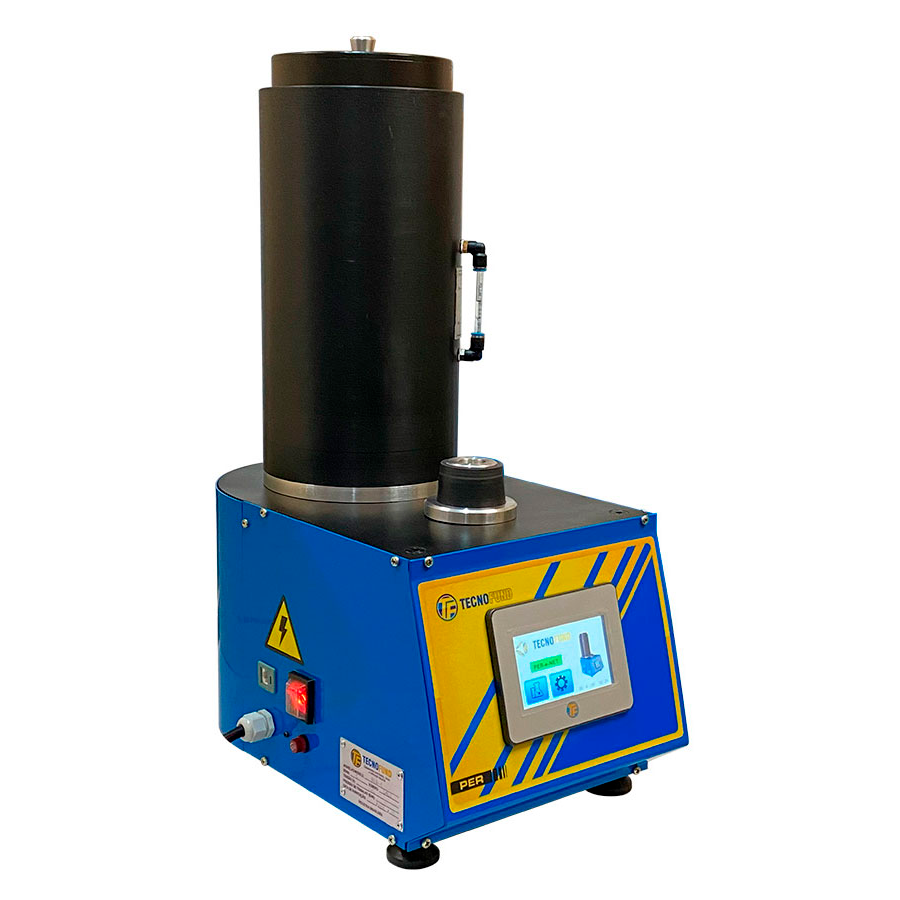

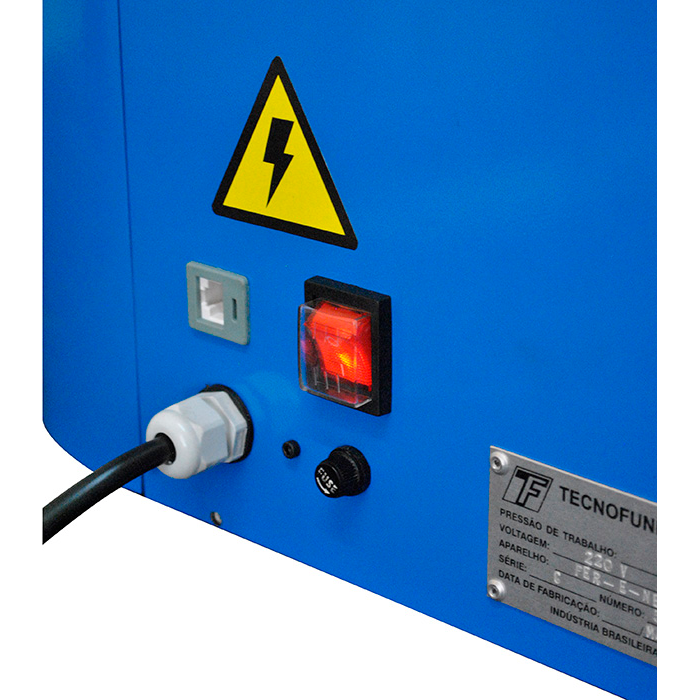

MODEL PER-e
SPECIFICATIONS
For determination the permeability of clay and/or chemically bonded sand specimens.
- Measuring range: 0 – 999 cm4/g.min. (AFS)
- Range resolution: 0,1 cm4/g.min. (AFS)
- Uses Metric ou AFS specimens
- Calibration standard included
- Power requirements: 230 V / 50-60 Hz
- Dimensions: 26 x 54 x 40cm
- Weight: 22 kg (48 lb)
×
Used in the model PER Digital Permmeter.

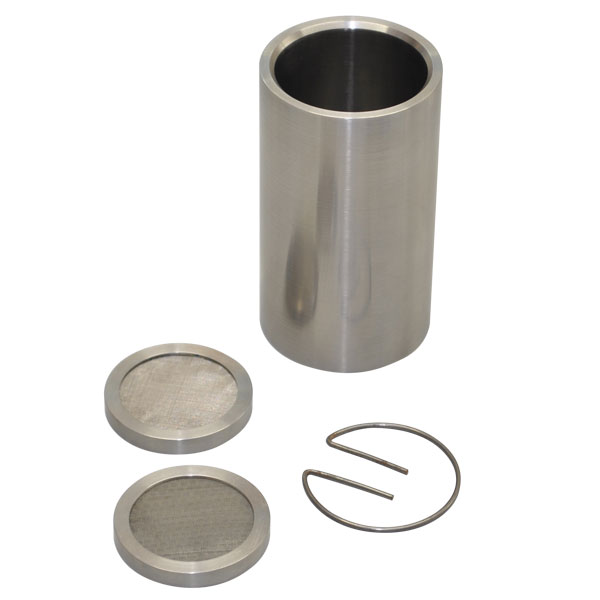

Model AP03
BASE PERMEABILITY ACCESSORY
This accessory measures the base permeability sands. The specimen is made in Sand Rammer Model MM.Used in the model PER Digital Permmeter.
×

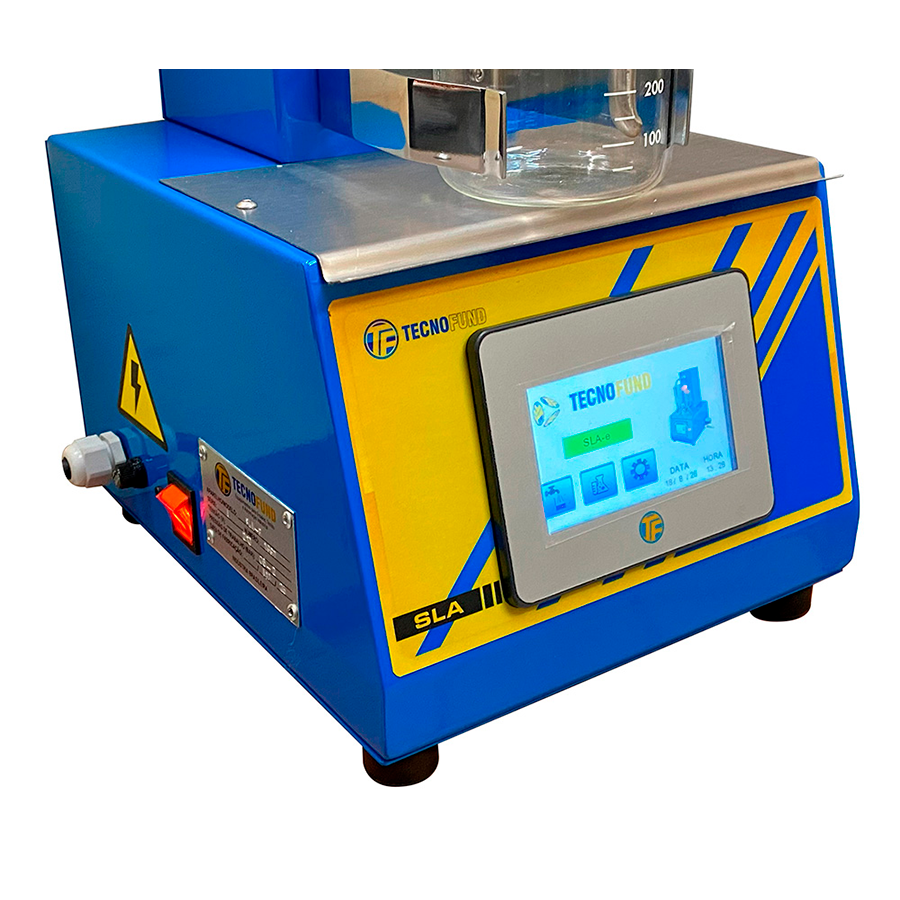

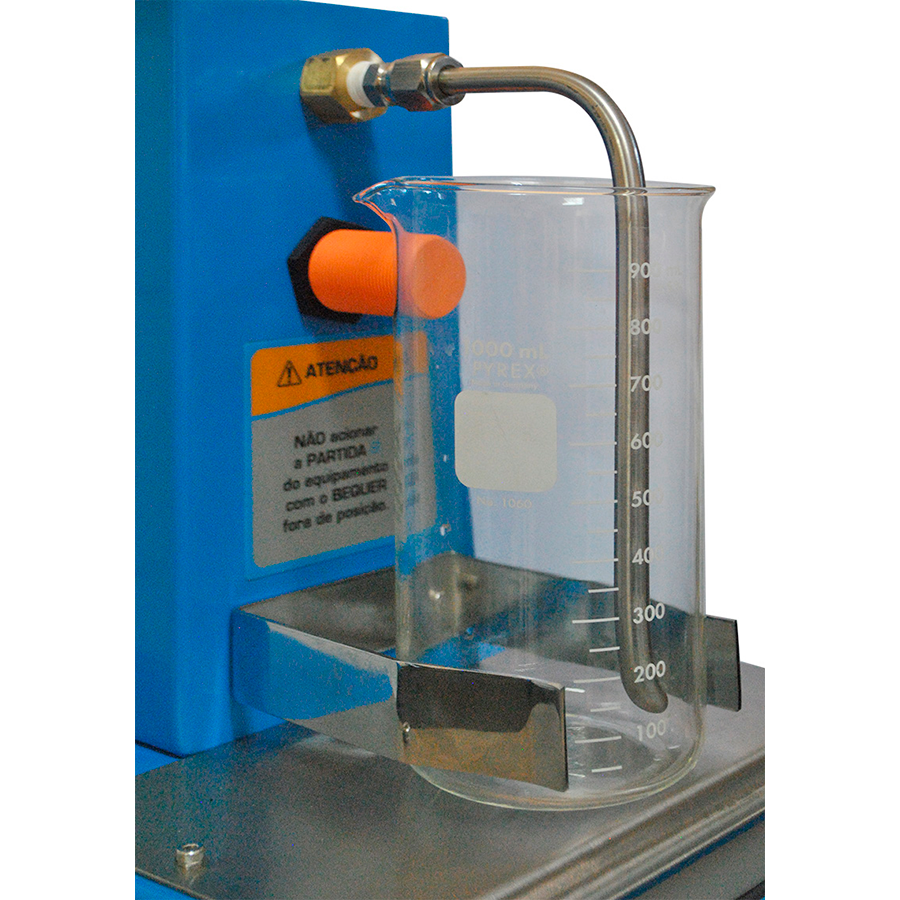

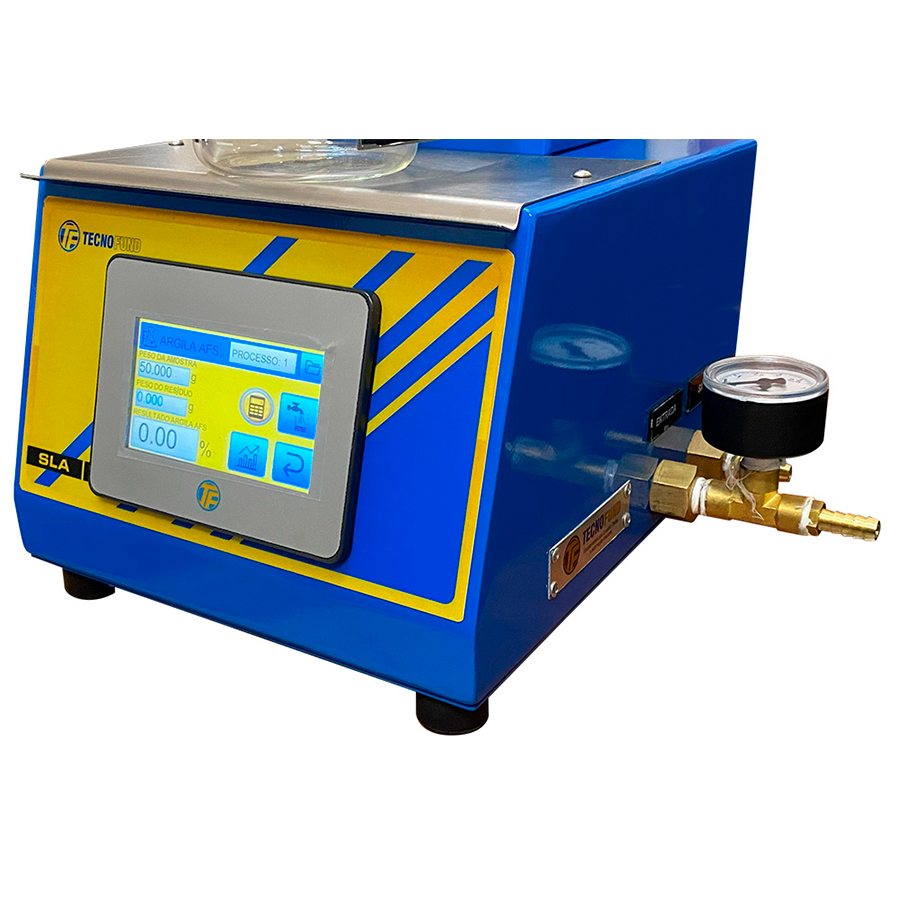

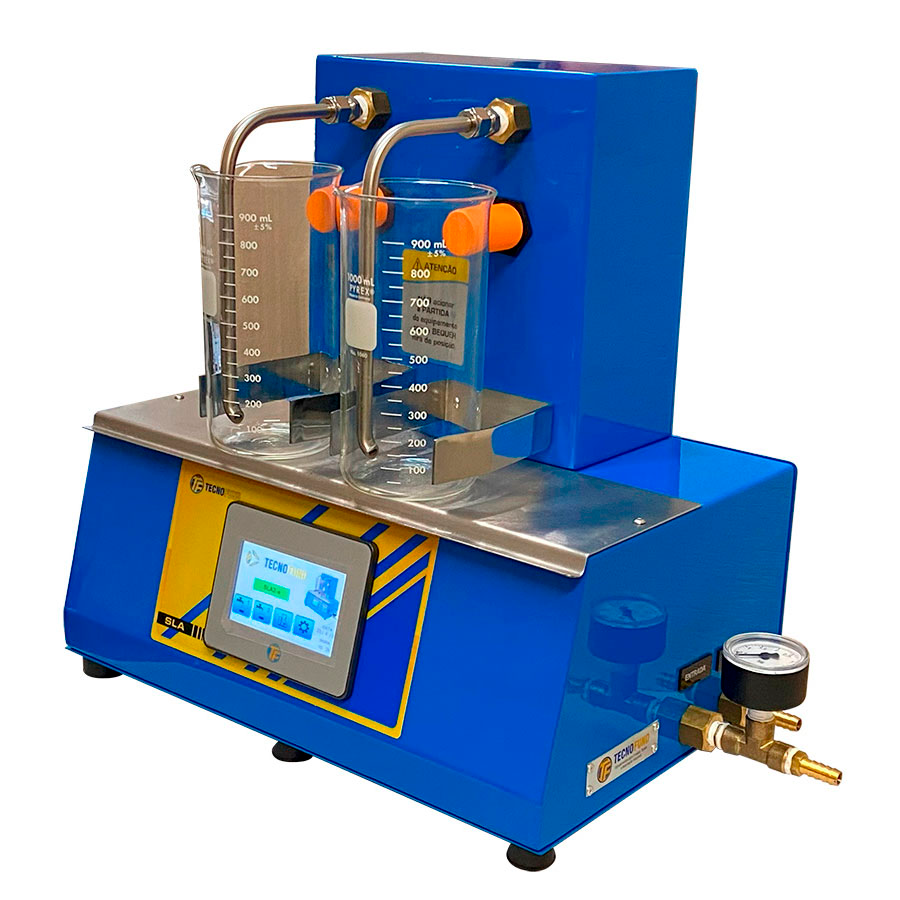

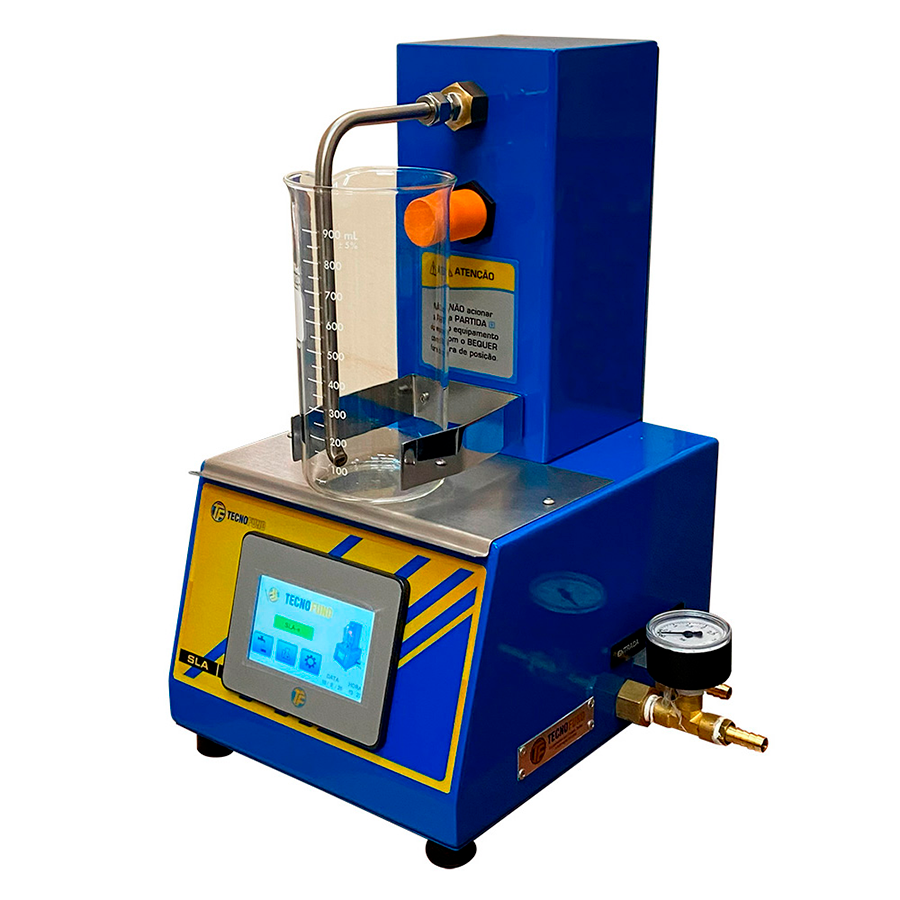

MODEL SLA-e
SPECIFICATIONS
For determining the percentage os AFS clay substance by scrubbing clay from sand grains, in accordance with the AFS fineness test.
- Automatic filling and draining.
- Digital controls of test time and cycles counter
- Includes 01 beaker (1000 ml)
- Power requirements: 230 V / 50-60 Hz
- Weight: 10 kg (22 lb)
×

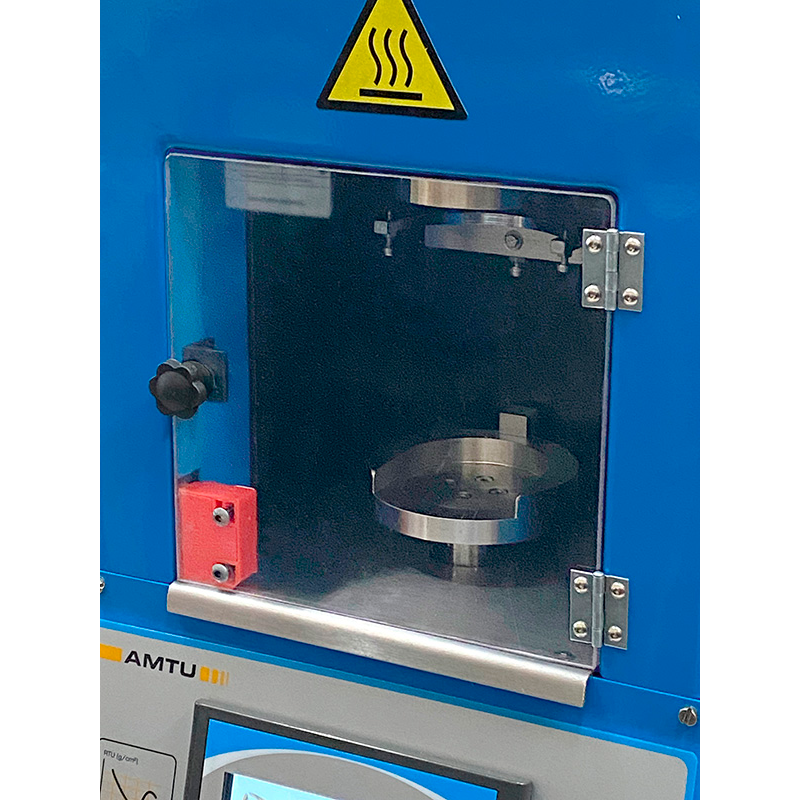

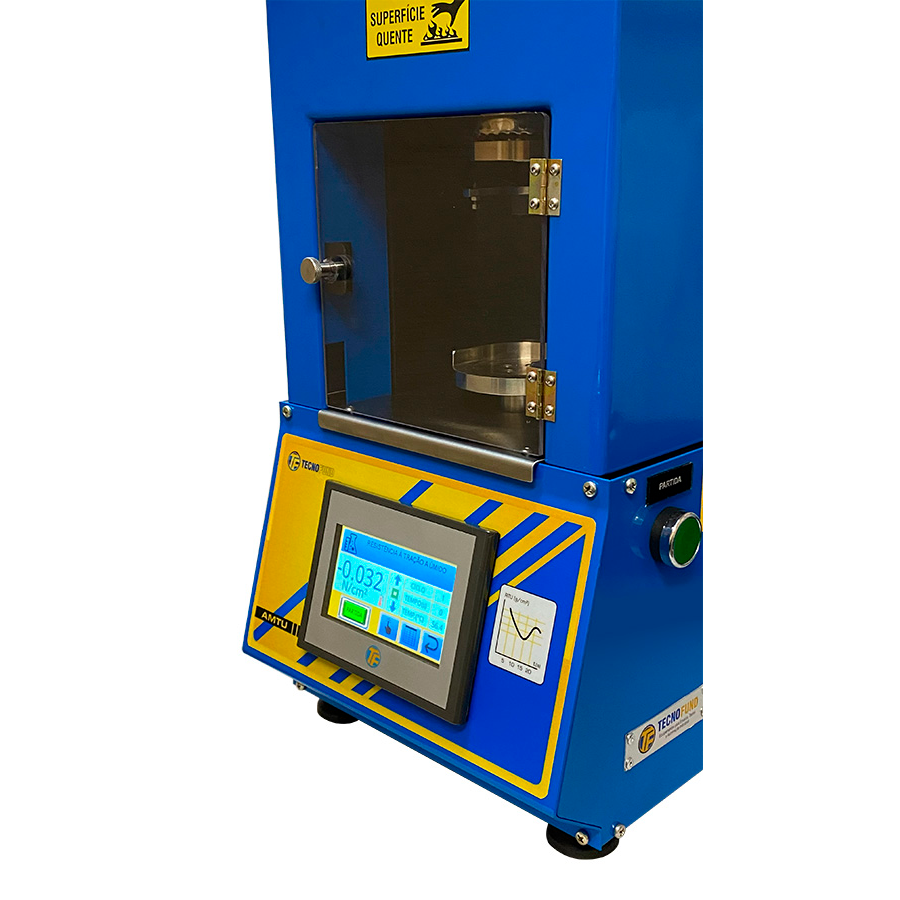

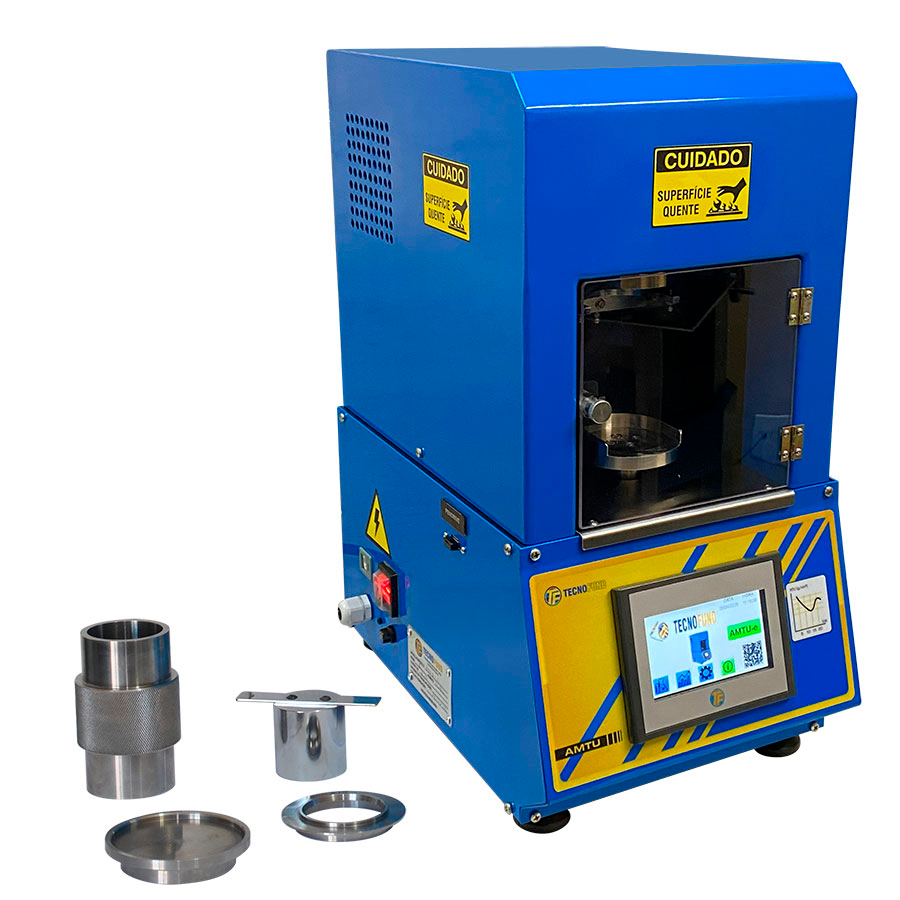

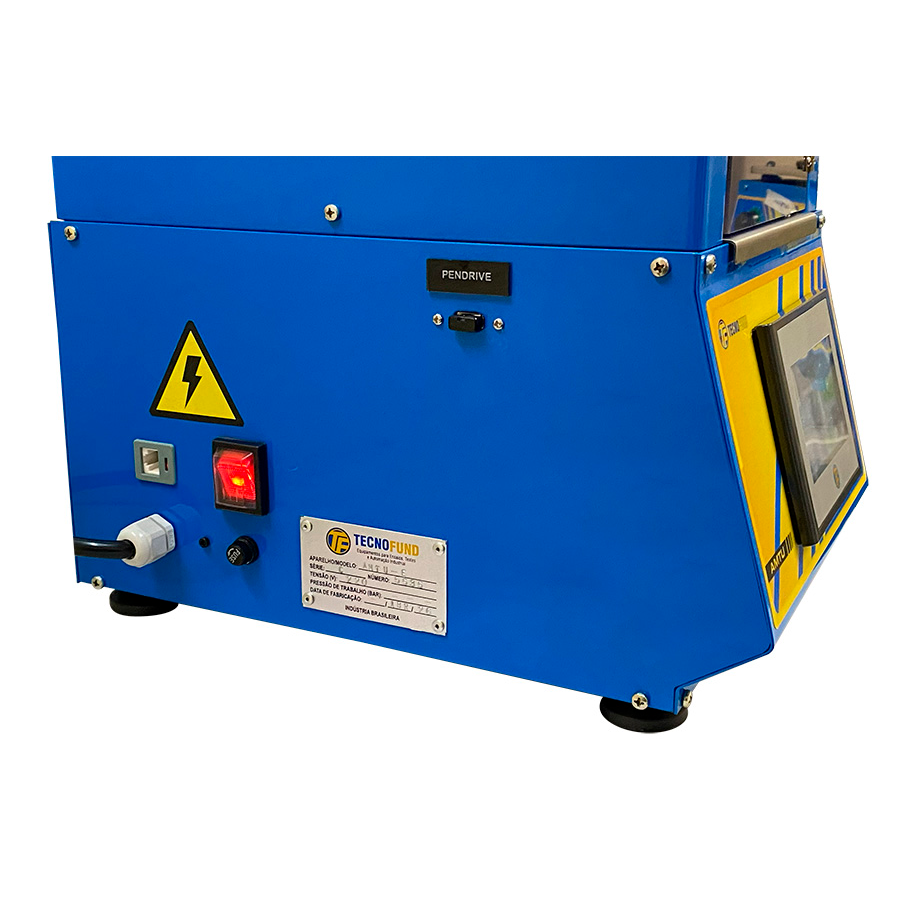

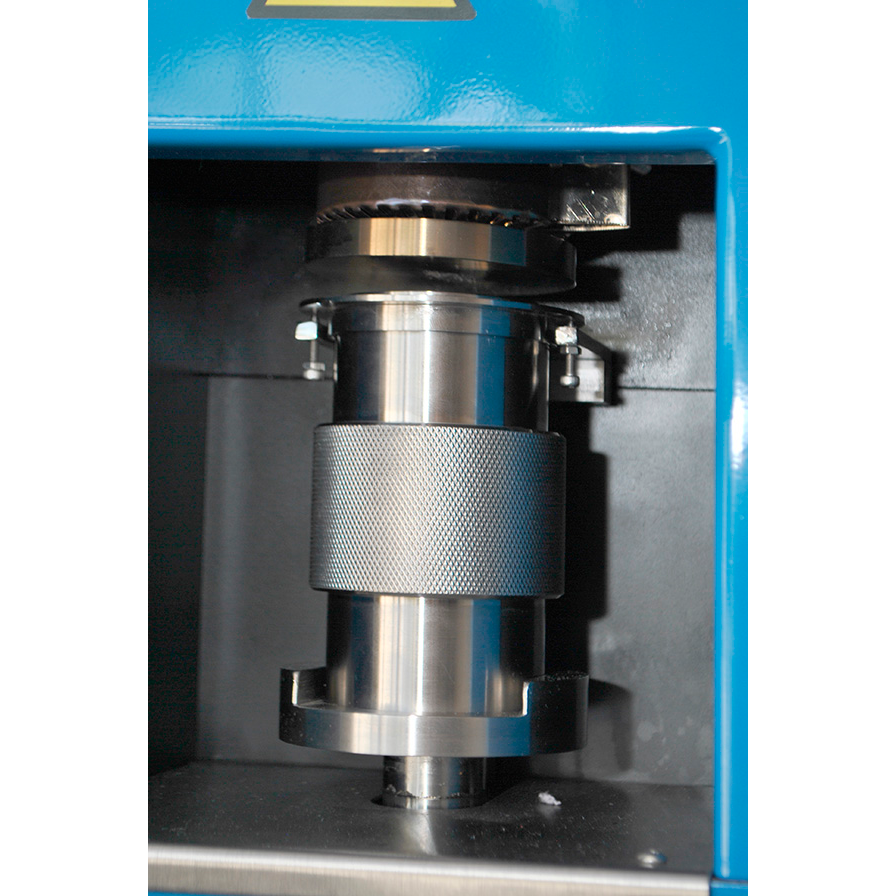

MODEL AMTU-e
SPECIFICATIONS
Performs the wet tensile strength testing for the evaluation of bentonit e moulding sands
- Measuring range: 0 – 0,600 N/cm2
- Range resolution: 0,001 N/cm2
- Heating Temperature: 300°C / 400w
- Cylindrical standard test specimen AFS ou Metric
- Includes a calibration standard
- Power requirements: 220 V / 50-60 Hz / 450w
- Results in N/cm2, Kgf/cm2 or psi
- Print data in label or sent to the PC via cable
- Dimensions: 30 x 42 x 50cm
- Weight: 35 kg (77 lb)

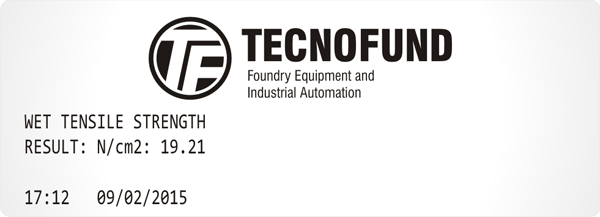

OPTIONAL PRINTER (self adhesive label Model)
