SHELL/CRONING SAND LABORATORY

Foundry Equipment

Model MRTQ-S-e

SHELL MOULD TESTER

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model MRUD-e

ELECTRONIC UNIVERSAL SAND COMPRESSIVE STRENGH

SPECIFICATIONS

ACESSORIES

AM05 | AM07 | AM06

Model PER-e

ELECTRONIC PERMMETER

SPECIFICATIONS

ACESSORIES

AP02

Model DMP

MELT POINT TESTER- SHELL SANDS

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

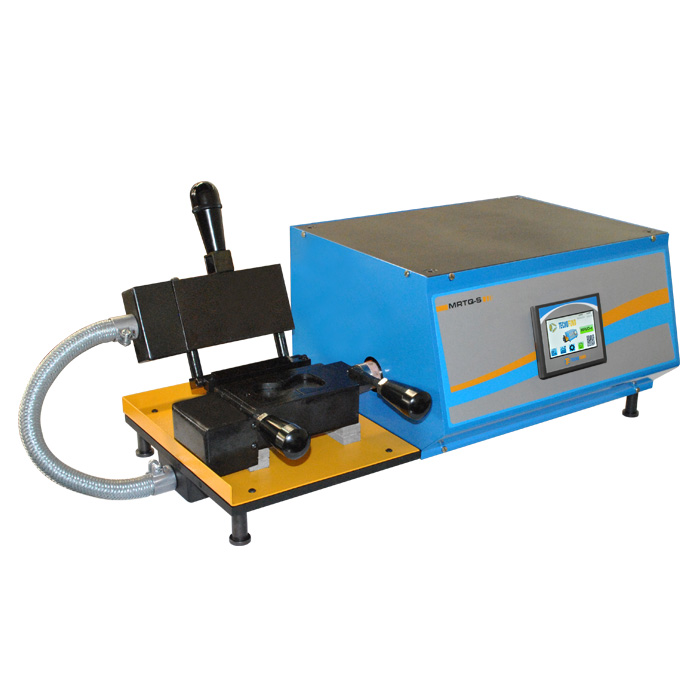

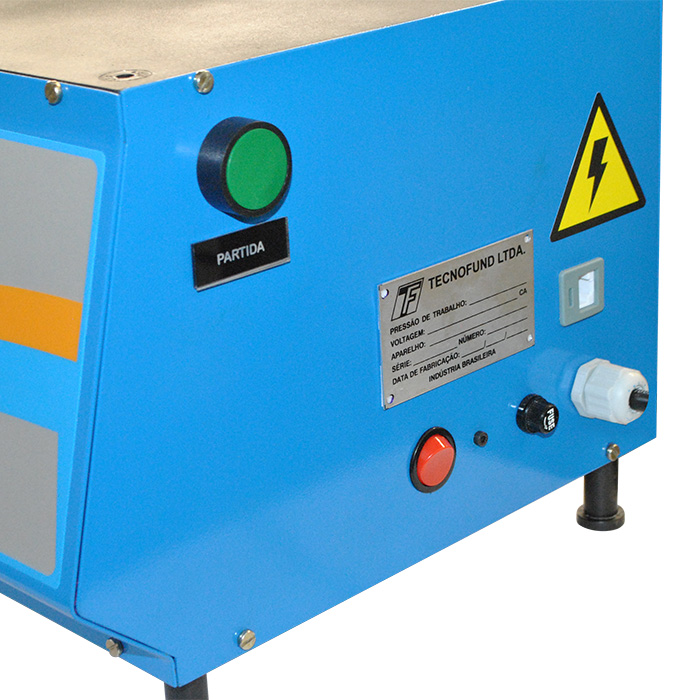

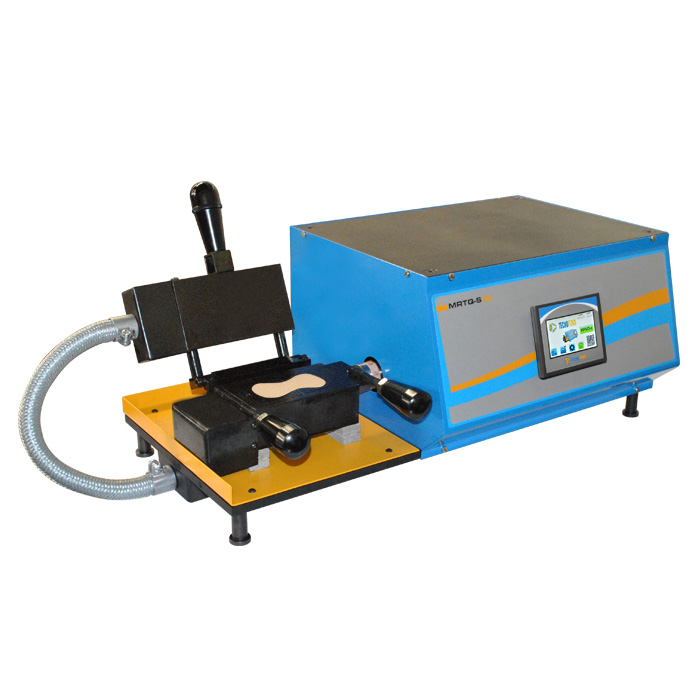

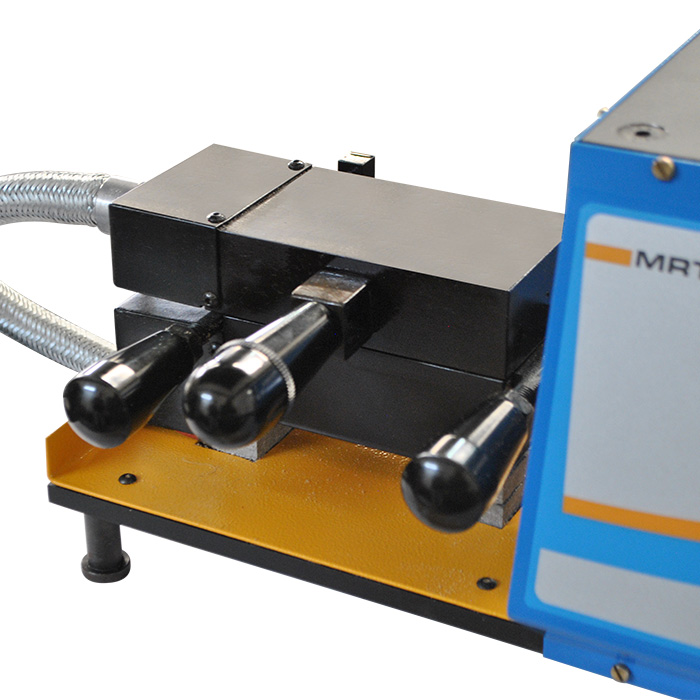

MODEL MRTQ-S-e

SPECIFICATIONS

This test machine measures the hot tensile strength of shell molding specimens.

Measuring range: 0 – 6000 N/cm2 (0 – 850 psi)
Range resolution: 0,1 N/cm2 (0,1 psi)
Temperatura control: 0 to 760 C
Cure timer: 0 to 9,99 min.
Power requirements: 230 V / 50-60 Hz (820 W)
Compressed air required: 6 bar (85 psi)
Weight: 48 kg (106 lb)

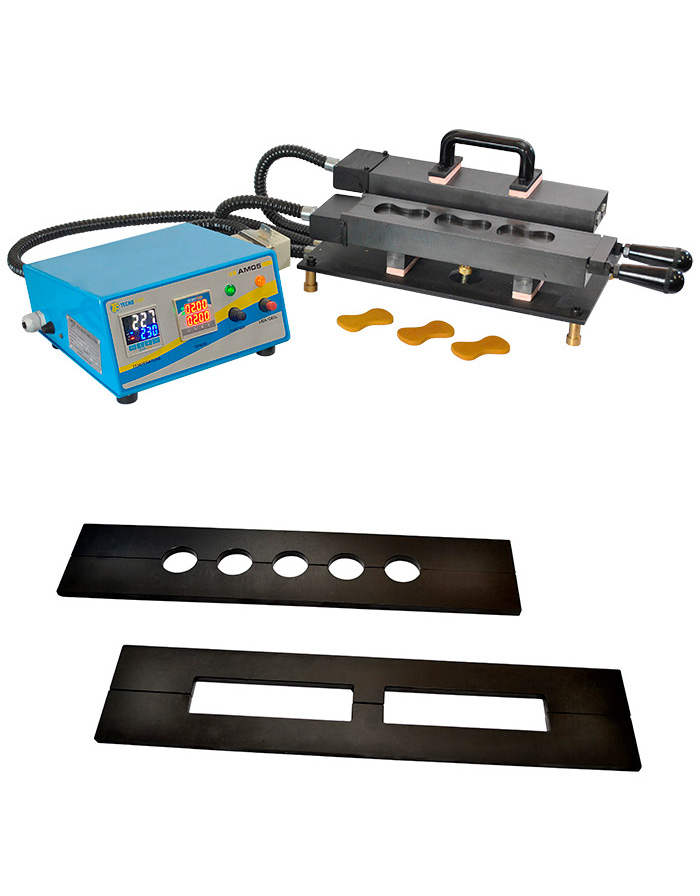

Model AM05

HEATED SHELL CURING ACCESSORY

For curing tensile, transverse and permeability shell specimens.

Digitals controls:
– cure timer: 0 to 99,9 minutes
– test temperature: 0 to 450 C
Power requirements: 220 V / 50-60 Hz
Weight: 23 kg (51 lb)

TESTING STANDARS

AFS Standars

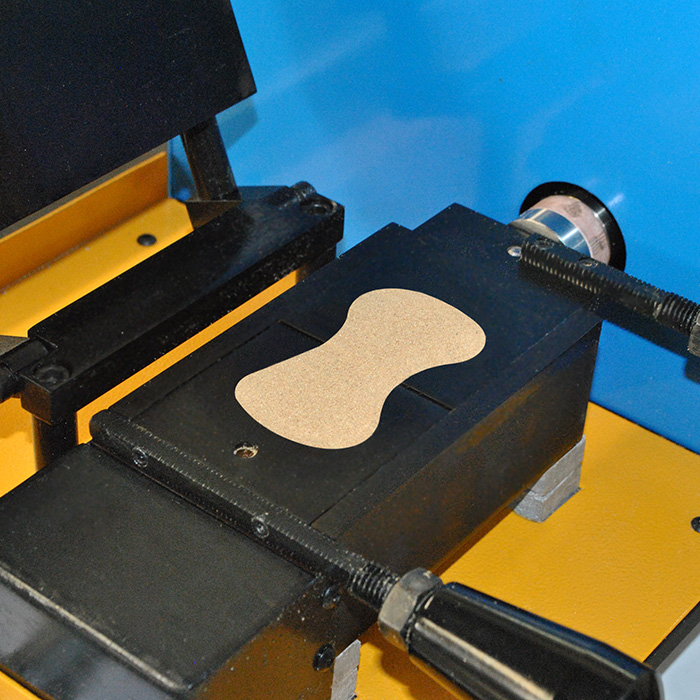

– Tensile Pattern – 1/4 ” (6,35 mm) thick
– Transverse Pattern – 1/4″ x 1″ x 4″
– Permeability Pattern – 2″ x 1/4″
Metric Standars
– Tensile Pattern – 7,8 mm thick
– Permeability Pattern – 26 mm x 8 mm

MODEL MRUD-E

SPECIFICATIONS

Performs the compression tests green.

Measuring range: 0 – 99,00 N/cm2 (compressive strength)
Range resolution: 0,01 N/cm2
Uses metric ou AFS specimens
Includes compressive strength accessories
Power requirements: 230 V / 50-60 Hz / 150w
Results in N/cm2, Kgf/cm2 or psi
Print data in label or sent to the PC via cable
Dimensions: 45 x 25 x 23cm
Weight: 26 kg (57 lb)

OPTIONAL PRINTER (self adhesive label Model)

Model AM07

TENSILE CORE STRENGTH ACCESSORY

Used in the model MRUD Electronic Universal Sand Strength Machine

MODEL PER-E

SPECIFICATIONS

For determination the permeability of clay and/or chemically bonded sand specimens.

Measuring range: 0 – 999 cm4/g.min. (AFS)
Range resolution: 0,1 cm4/g.min. (AFS)
Uses Metric ou AFS specimens
Calibration standard included
Power requirements: 230 V / 50-60 Hz
Dimensions: 26 x 54 x 40cm
Weight: 22 kg (48 lb)

Model AM06

TRANSVERSE CORE STRENGTH ACCESSORY

Used in the model MRUD Electronic Universal Sand Strength Machine

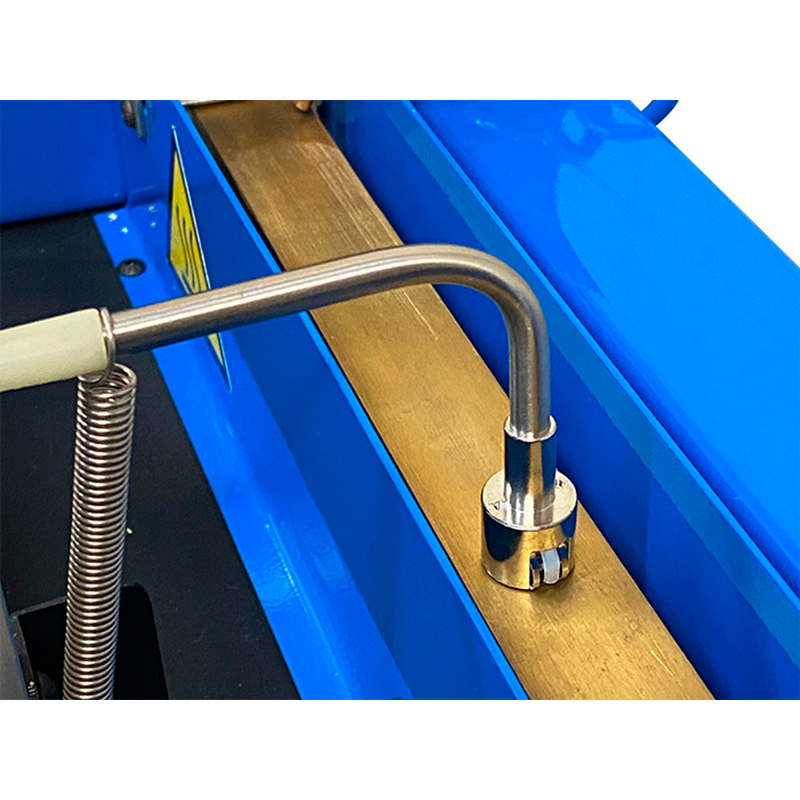

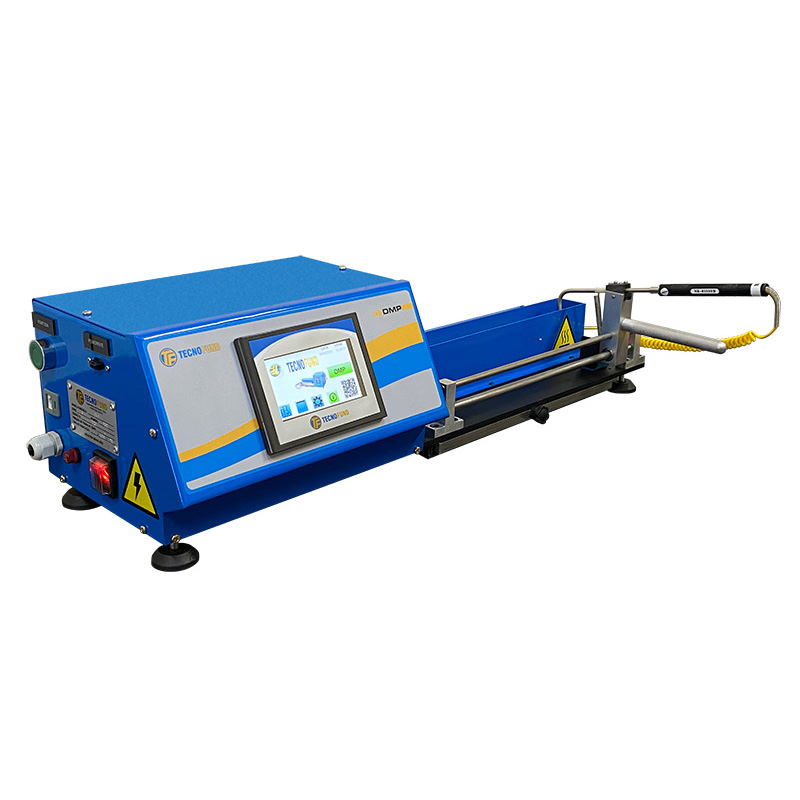

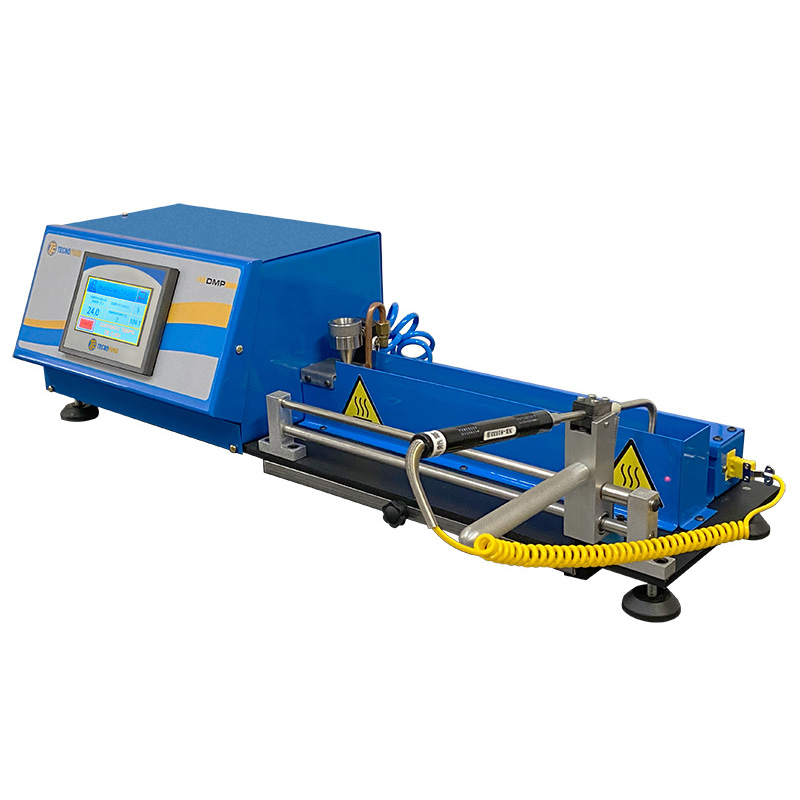

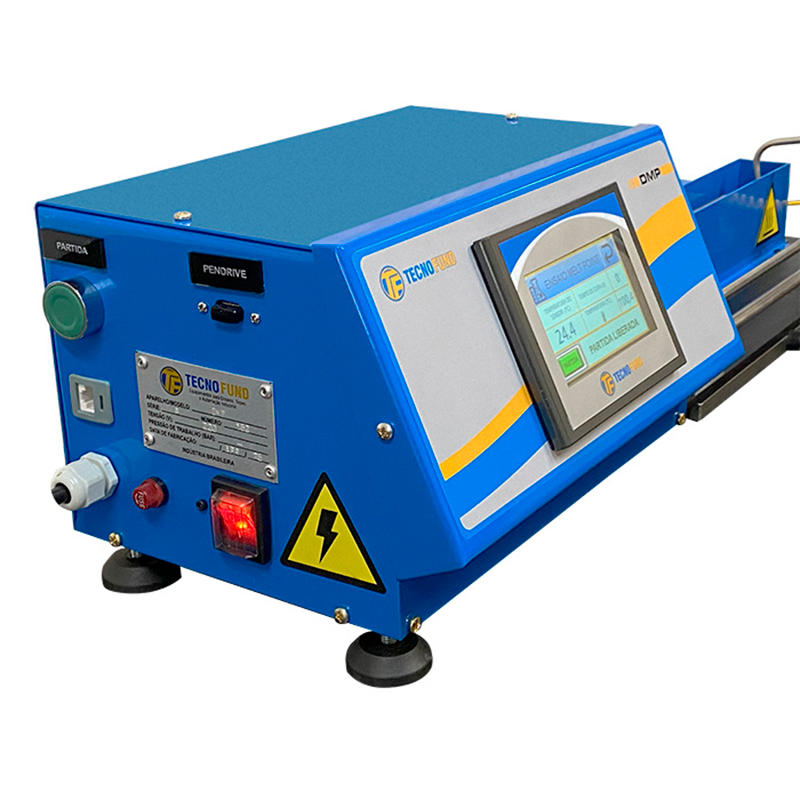

MODEL DMP

SPECIFICATIONS

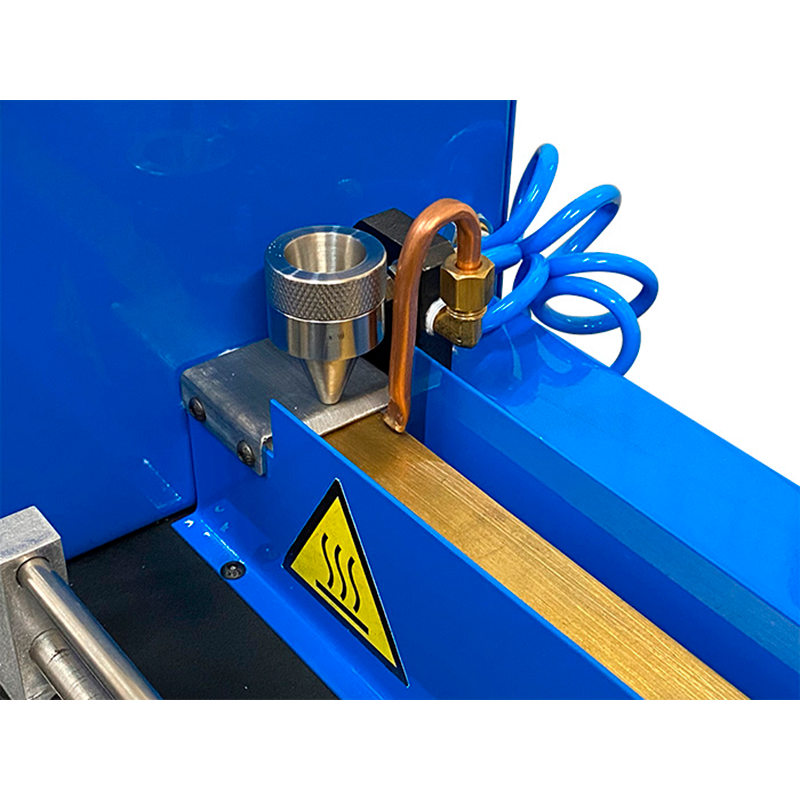

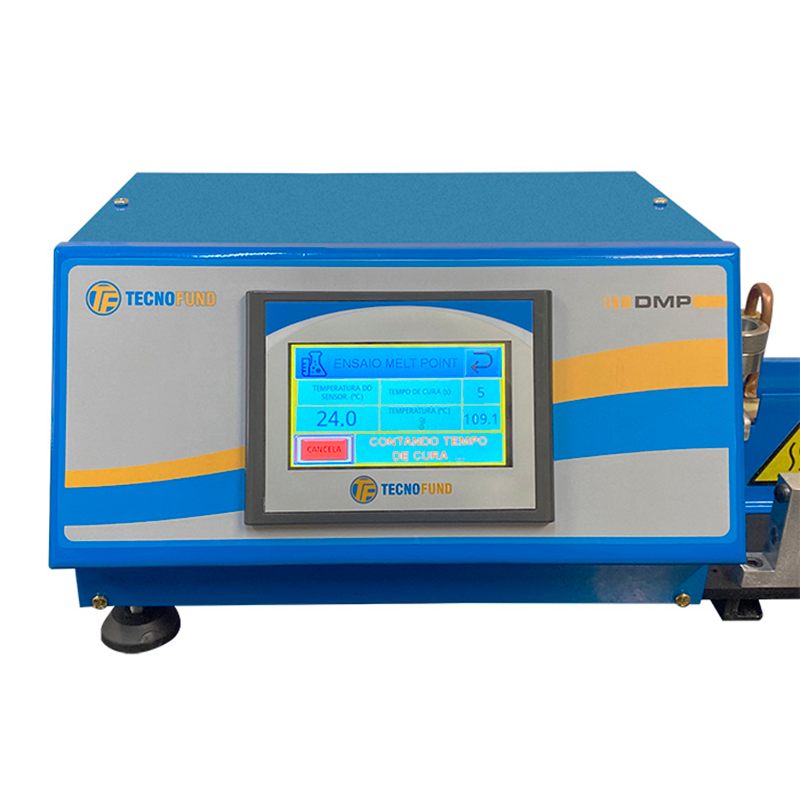

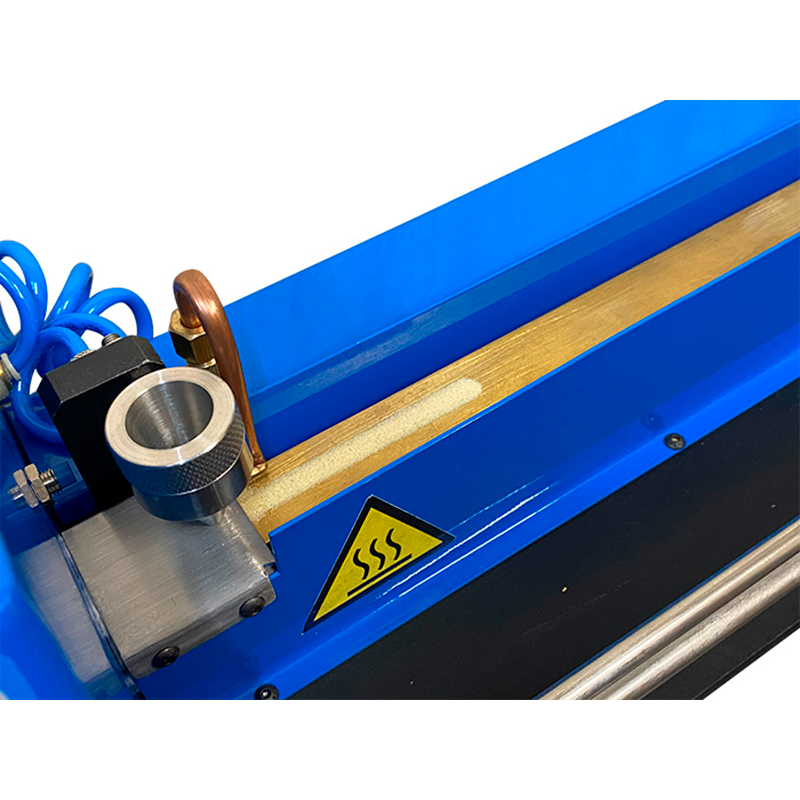

This test instrument measures the melt point or stick point of shell resin coated sands.

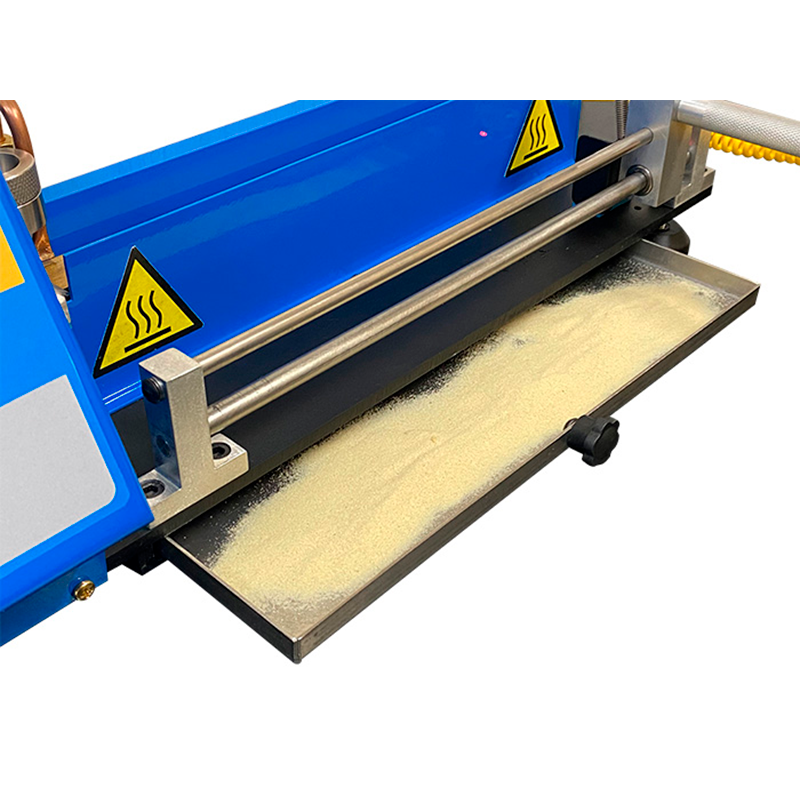

Automatic advance and return to the distribution of sand on top bar, automatic blow to detect the melt point
Has a high-precision thermocouple tip.
Digitals controls:
– cure timer: 0 to 99,9 minutes
– test temperature: 0 to 200° C
– heated bar temperature: 0 to 200° C
Power requirements: 220 V / 50-60 Hz
Compressed air required: 4 – 6 bar (56 – 85 psi)
Weight: 40 kg (88 lb)

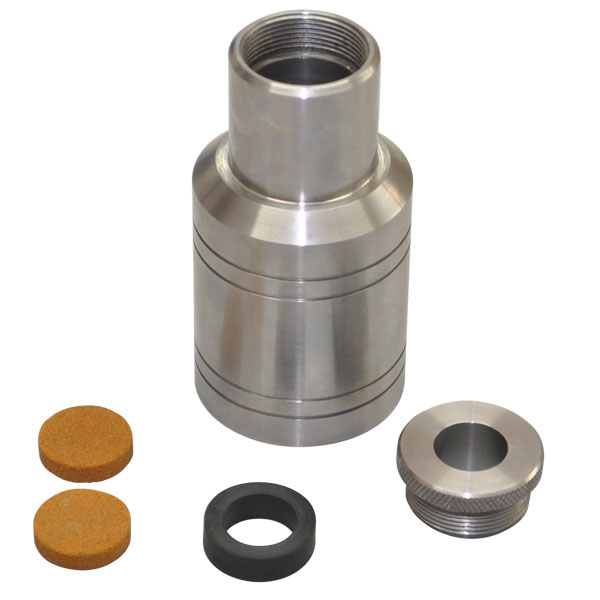

Model AP02

SHELL PERMEABILITY ACCESSORY

This accessory measures the permeability of shell sand samples. The sand specimen is held in a metal fixture by a flexible ring.
The shell permeability specimen is made in the Heated Shell Curing Accessory Model AM-05C. Used in the model PER Digital Permmeter.

Model DPB

PEEL BACK TESTER – SHELL SANDS

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model DVG-e

GAS PRESSURE AND VOLUME MEASURING DEVICE

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model DDM

CORE HARDNESS TESTER

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

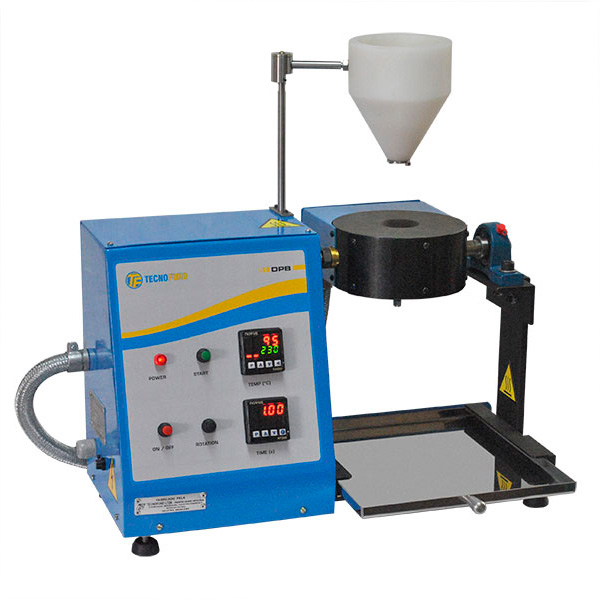

MODEL DPB

SPECIFICATIONS

This test instrument measures the peel back test of shell resin coated sands.

Automatic spin and return of the heated disc
Digitals controls:
– cure timer: 0 to 99,9 minutes
– test temperature: 0 to 450° C
Includes stainless steel tray
Power requirements: 220 V / 50-60 Hz
Weight: 25 kg (55 lb)

MODEL DVG-E

SPECIFICATIONS

This device serves to measure the gas pressure and, indirectly, the gas volume (the sum of all gasses) on various foundry materials.
With a special software (included) the pressure diagram can be displayed on a computer.

Fully electronic equipment indicating via IHM with temperature control, pressure and test time
Digitals controls:
– Gas pressure range: 0 -250 mbar (0 – 3,60 psi)
– Test temperature: 0 to 1100° C
Cylindrical furnace with metal resistors and isolated with ceramic blanket.
Nitrogen gas required: 2 -4 bar (28 – 56 psi)
Power requirements: 220 V / 50-60 Hz / 1500 w
Dimensions: 35 x 80 x 80cm
Weight: 45 kg (99 lb)

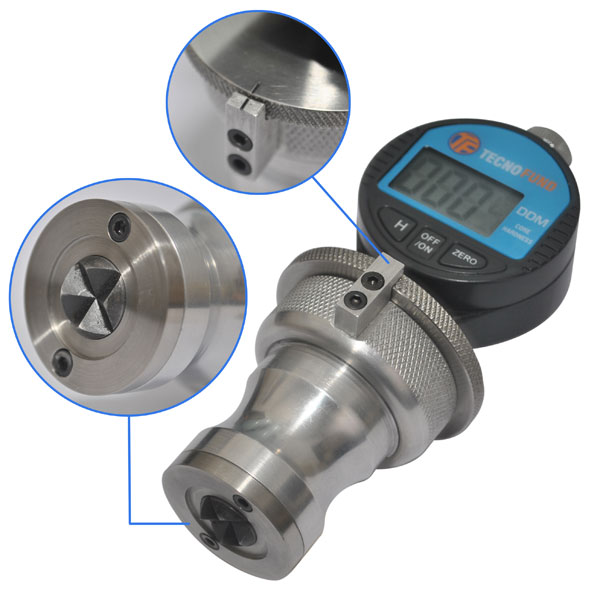

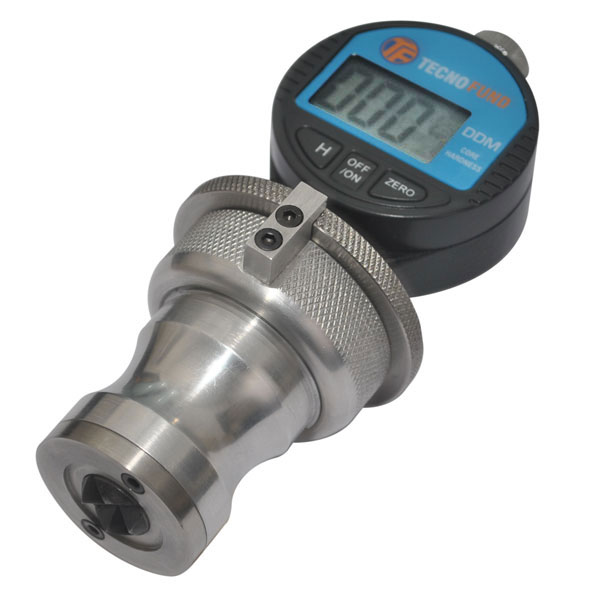

MODEL DDM

SPECIFICATIONS

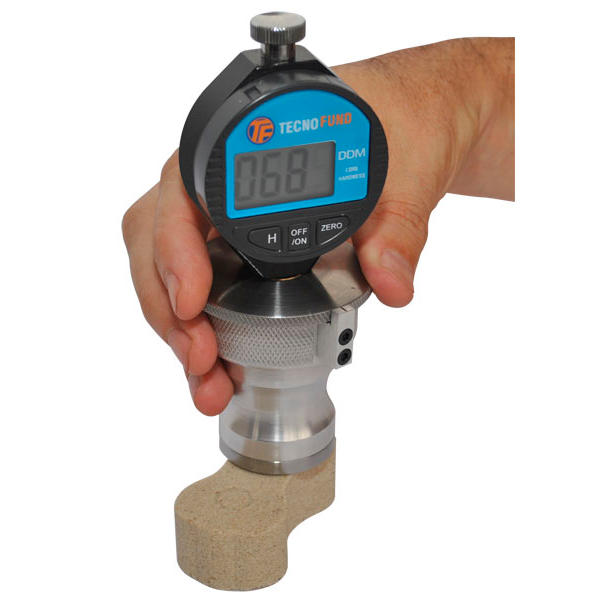

A practical pocket-sized instrument for measuring the surface and sub-surface hardness of baked cores and dry sand molds.

Measuring range: 0 – 100 AFS
Direct reding with lock system
Uses 1-SR44 Button Cell Battery
Weight: 0,5 kg (1,10 lb)
