CHEMICAL PROCESS SAND LABORATORY

Foundry Equipment

Model DAP

DIGITAL STRENGTH TESTING APPARATUS

SPECIFICATIONS

ACESSORIES

AD02 | AD03

Model MSL-e

BLOWER SPECIMEN APPARATUS

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model BP

CORE SAND MIXER

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model DDT-M

CORE HARDNESS TESTER

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

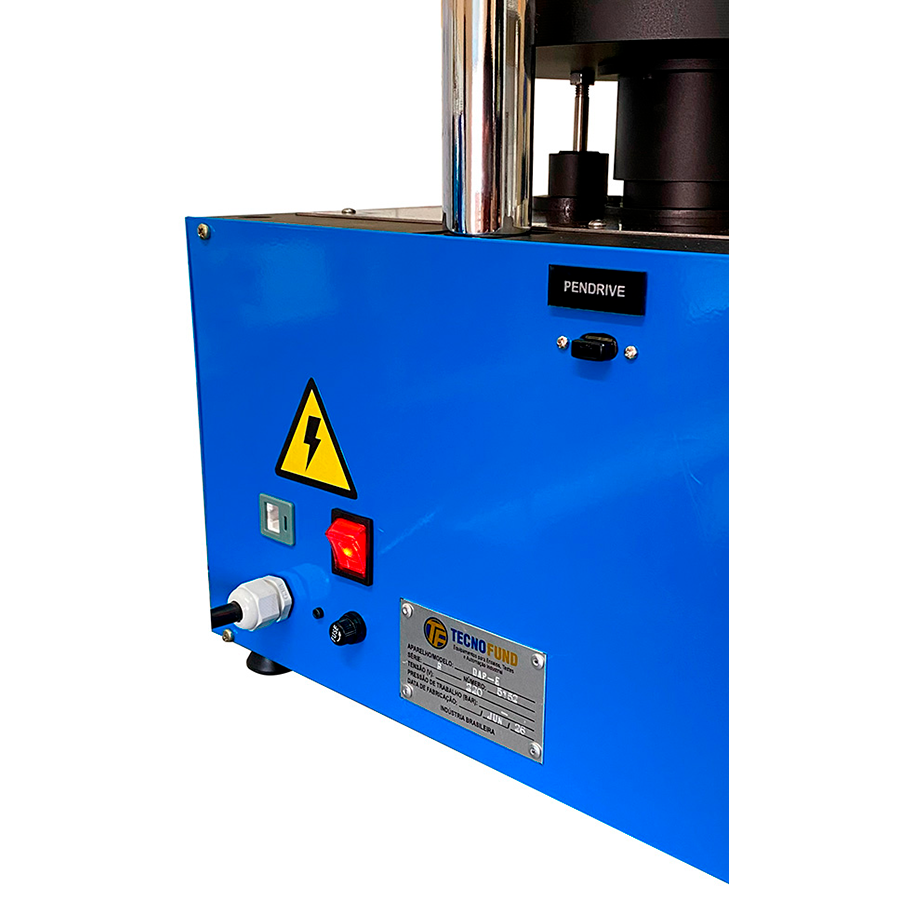

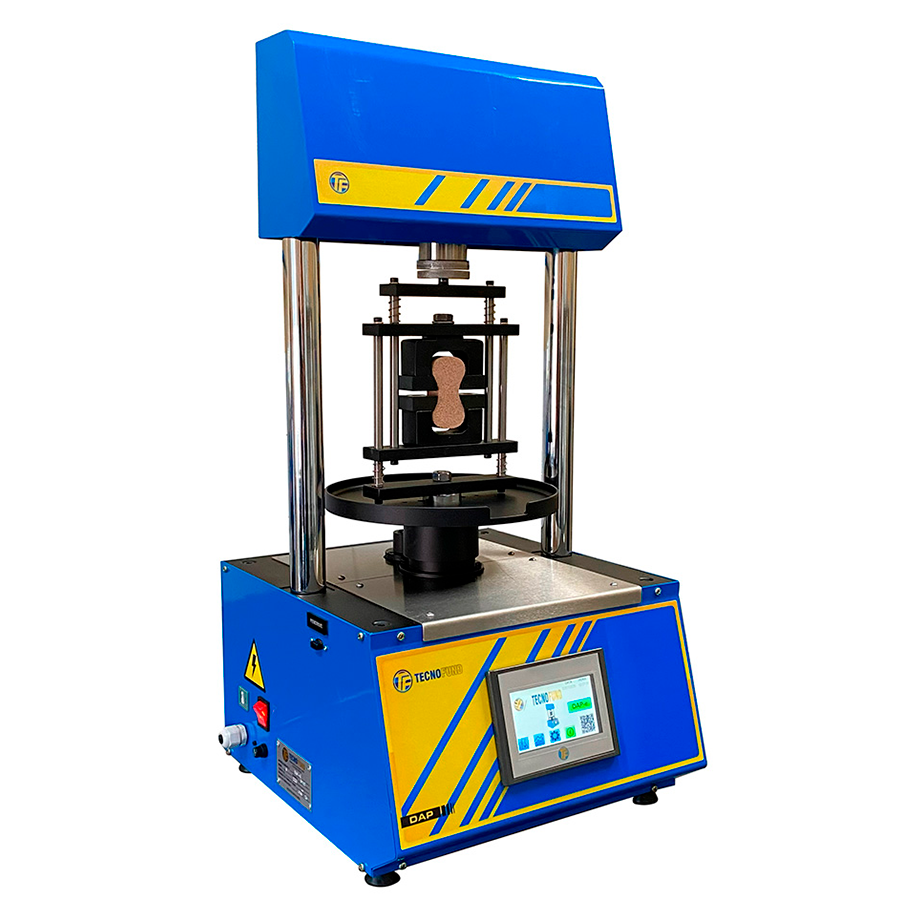

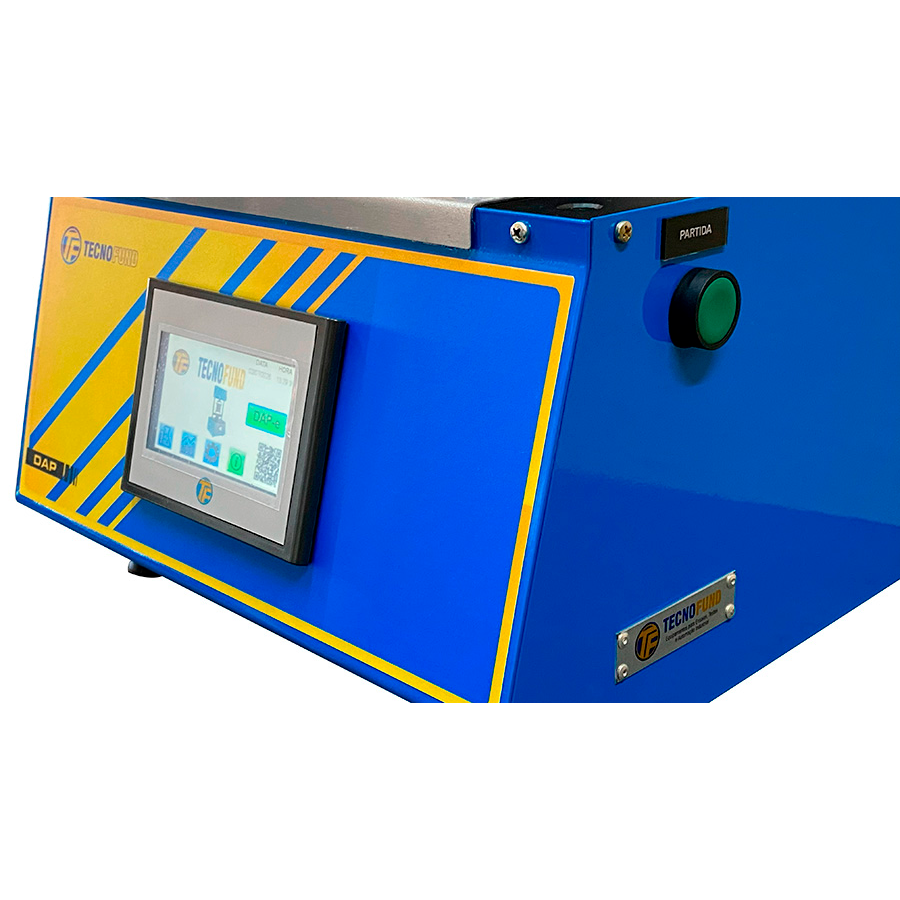

MODEL DAP

SPECIFICATIONS

For determination of the tensile and transverse strength of resin-bonded sand (cold box and hot box processes).

Measuring range: 0 – 990 N/cm2 (Tensile)
Range resolution: 0,1 N/cm2
Cylindrical standard test specimen AFS ou Metric
Results N/cm2, Kgf/cm2 or psi
Power requirements: 220 V / 50-60 Hz
Dimensions: 37 x 77 x 40cm
Weight: 50 kg (110 lb)

Model AD02

TRANSVERSE CORE STRENGTH ACCESSORY

Used in the model DAP Digital Strength Testing Apparatus

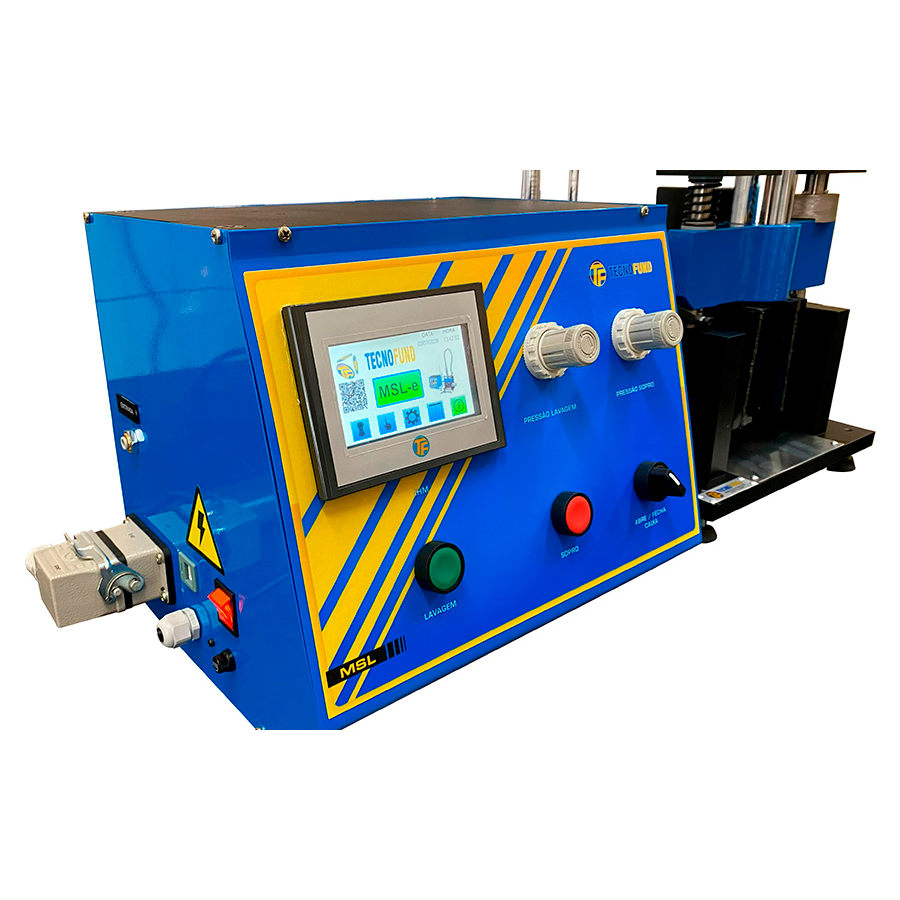

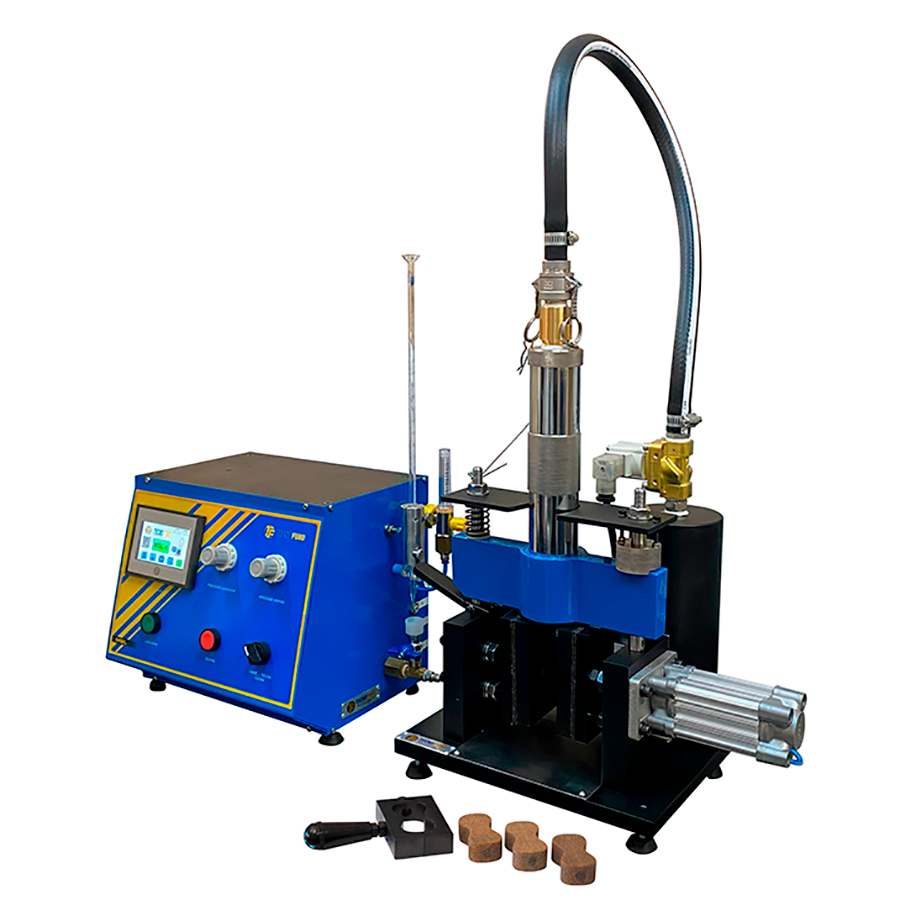

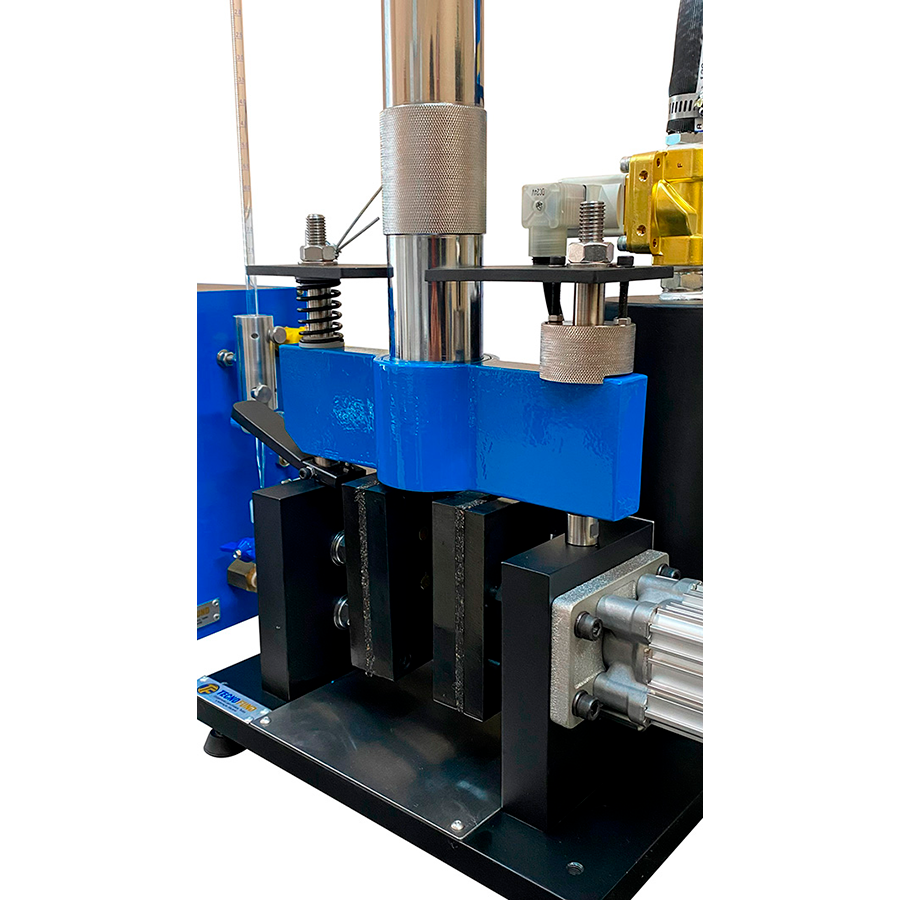

MODEL MSL-E

SPECIFICATIONS

Blow and gas-cures specimens of cold box mixes

Digitals controls:
– air purge timer range: 0 – 99,9 sec.
– blow timer range: 0 – 9,99 sec.
– amine gas temperature range: 0-90,0 C

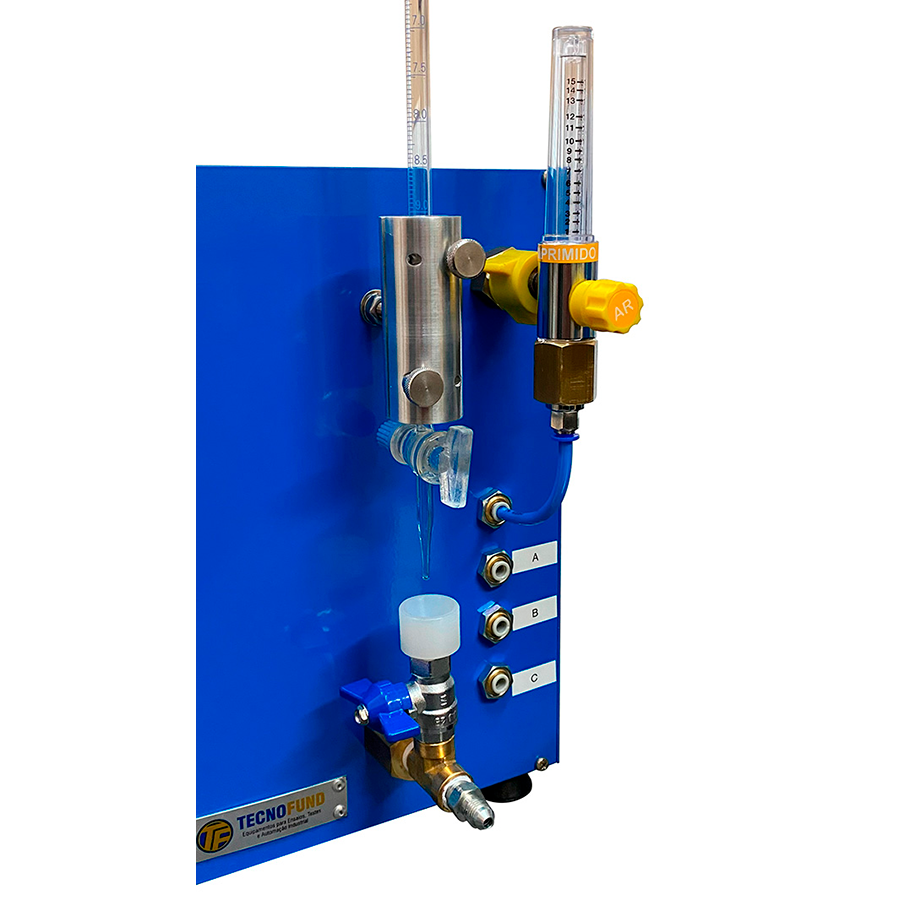

Controls the pressure and flow of amine gas
Graduated burette for amine gas
Compressed air required: 4 – 6 bar (56 – 85 psi)
Power requirements: 230 V / 50-60 Hz
Weight: 45 kg (99 lb)
Includes a Tensile box
Range: One Specimen

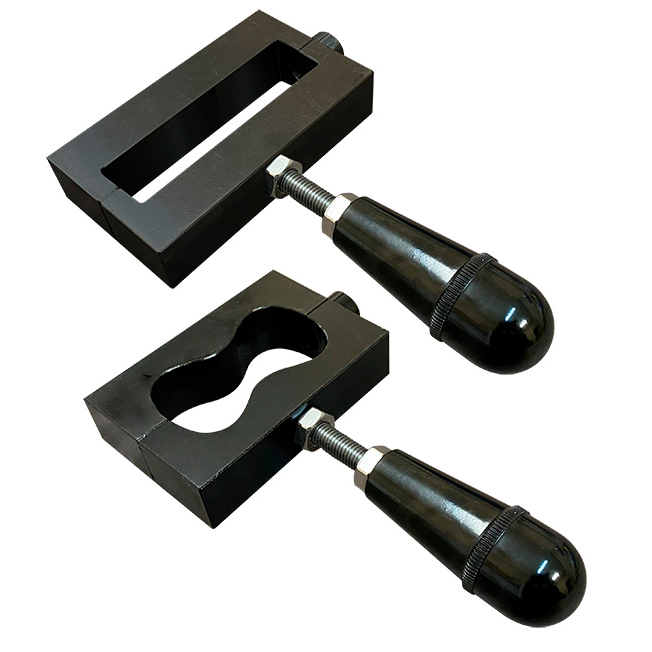

ACCESSORIES:

MSL-e-CB
MSL-e-HC
MSL-e-HB

Model AD03

TENSILE CORE STRENGTH ACCESSORY

Used in the model DAP Digital Strength Testing Apparatus

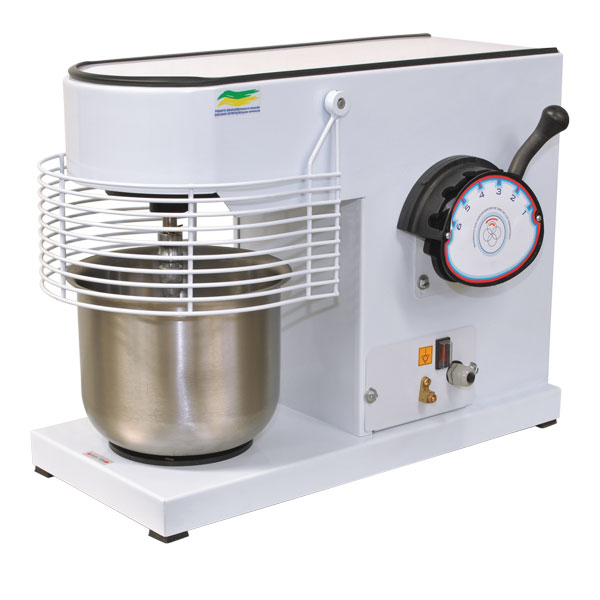

MODEL BP

SPECIFICATIONS

Cold setting sands require short mixing times and intensive coating of the grains with blinder. The BP mixer perfectly meets both requirements, and is also suited for gas cured moulding sands.

Capacity: 5 kg (11lb)
Motor 1/4 cv mono
Power requirements: 127/220 V
Weight: 32 kg (70 lb)

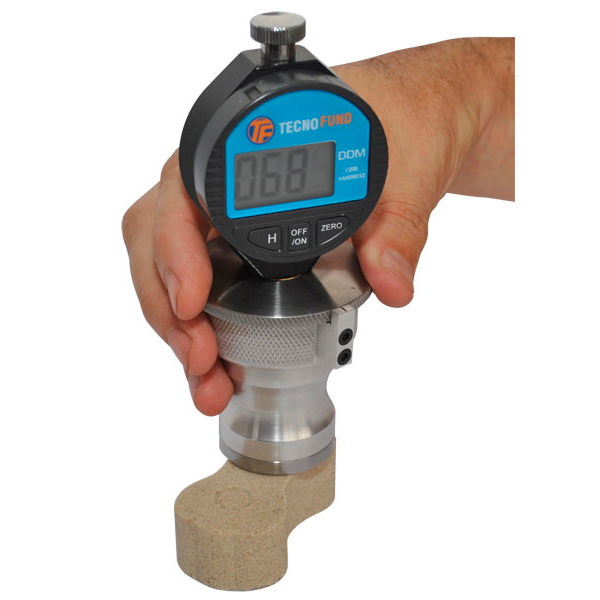

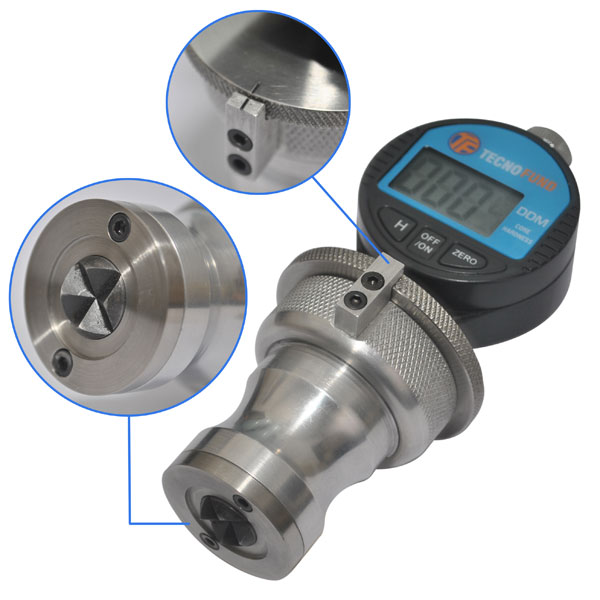

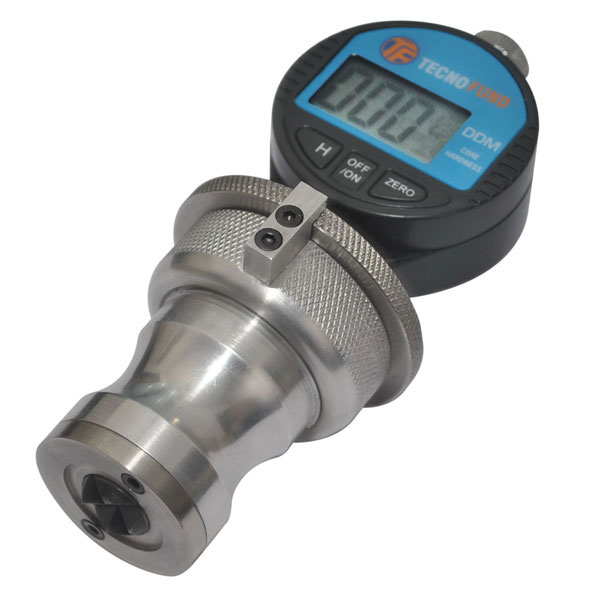

MODEL DDT-M

SPECIFICATIONS

A practical pocket-sized instrument for measuring the surface and sub-surface hardness of baked cores and dry sand molds.

Measuring range: 0 – 100 AFS
Direct reding with lock system
Uses 1-SR44 Button Cell Battery
Weight: 0,5 kg (1,10 lb)

Model MRUD-e

ELECTRONIC UNIVERSAL SAND COMPRESSIVE STRENGH

SPECIFICATIONS

ACESSORIES

AM07 | AM06

Model AM08T

TENSILE CORE BOX STRENGTH ACCESSORY

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model AM08F

TENSILE CORE BOX FLEXION ACCESSORY

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model DVG-e

GAS PRESSURE AND VOLUME MEASURING DEVICE

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

MODEL MRUD-E

SPECIFICATIONS

Performs the compression tests green and transverse strength (PEP SET processes).

Measuring range: 0 – 100,00 N/cm2 (compressive strength)
Measuring range: 0 – 361,00 N/cm2 (transverse strength)
Range resolution: 0,01 N/cm2
Uses metric ou AFS specimens
Includes compressive strength accessories
Power requirements: 230 V / 50-60 Hz / 150w
Results in N/cm2, Kgf/cm2 or psi
Print data in label or sent to the PC via cable
Dimensions: 45 x 25 x 23cm
Weight: 26 kg (57 lb)

OPTIONAL PRINTER (self adhesive label Model)

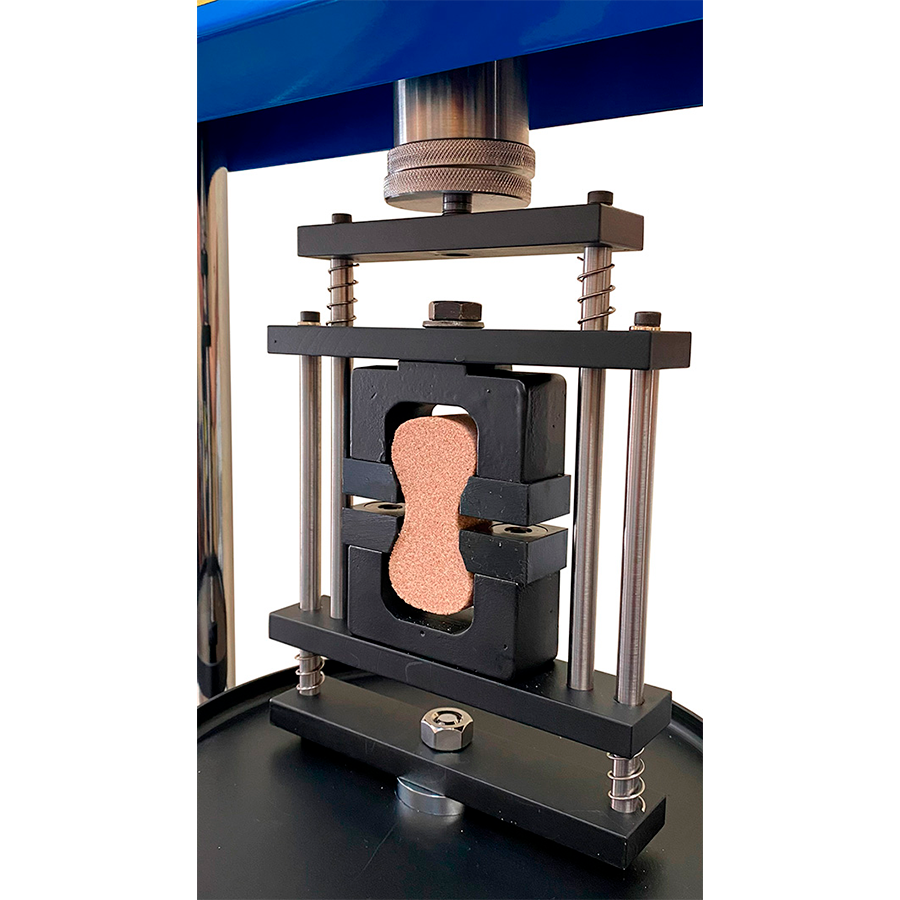

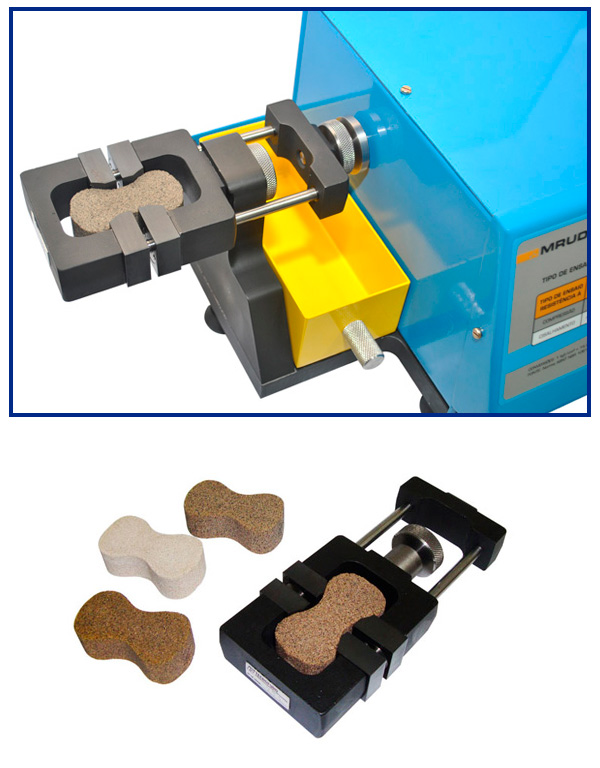

Model AM07

TENSILE CORE STRENGTH ACCESSORY

Used in the model MRUD Electronic Universal Sand Strength Machine

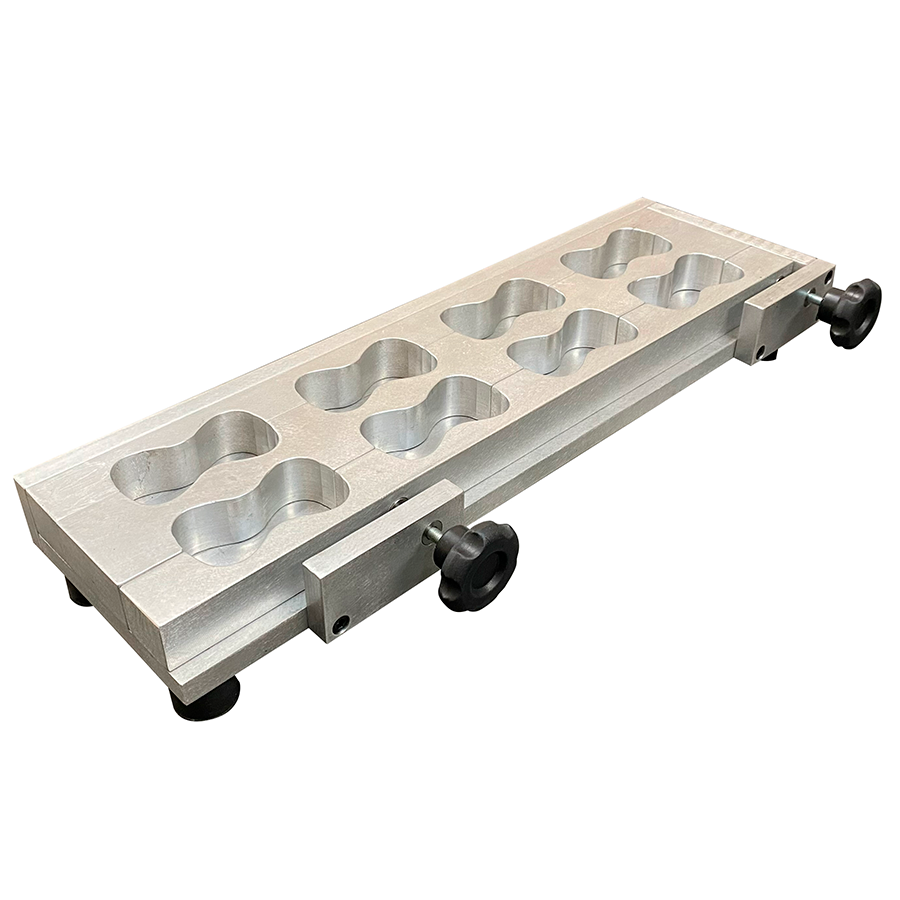

MODEL AM08T

SPECIFICATIONS

TENSILE CORE BOX STRENGTH ACCESSORY

This multiple-cavity tensile core box is uded to make standar tensile sand specimens bonded with air set, gassing or core oil type blinders.

Prepares 8 tensile especimens or 6 core transverse strenght.

TESTING STANDARS

AFS Standars: 1″ (25,4 mm) thick
Metric Standars: 22,4 mm thick

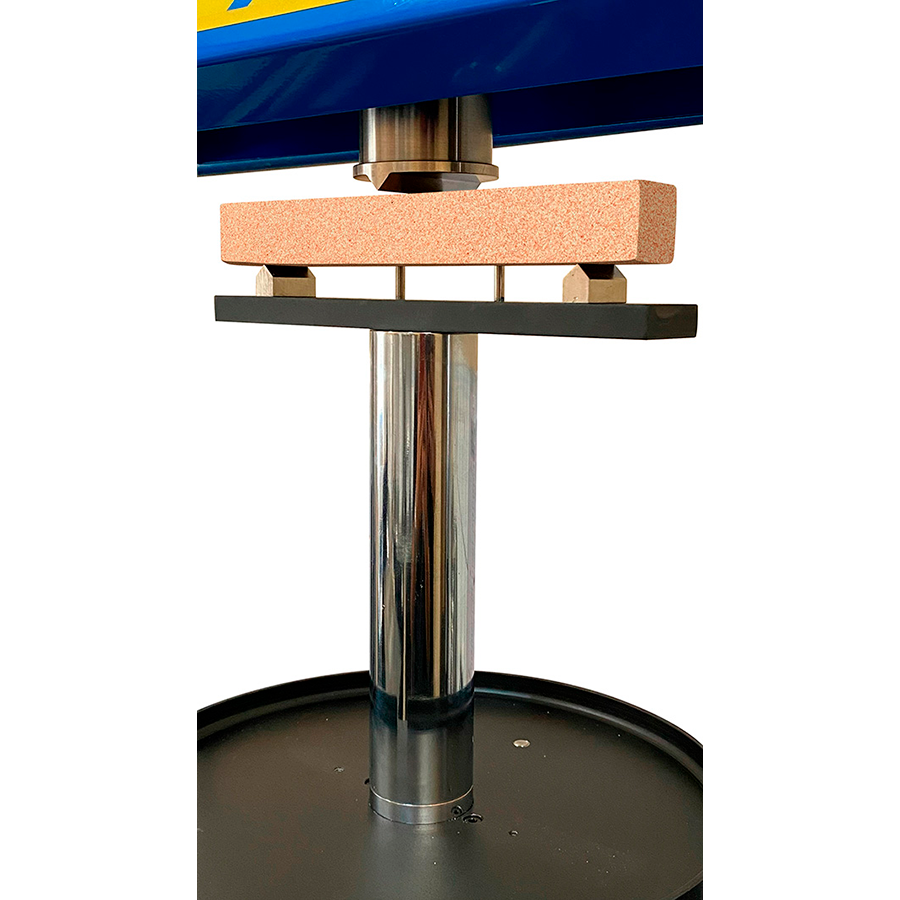

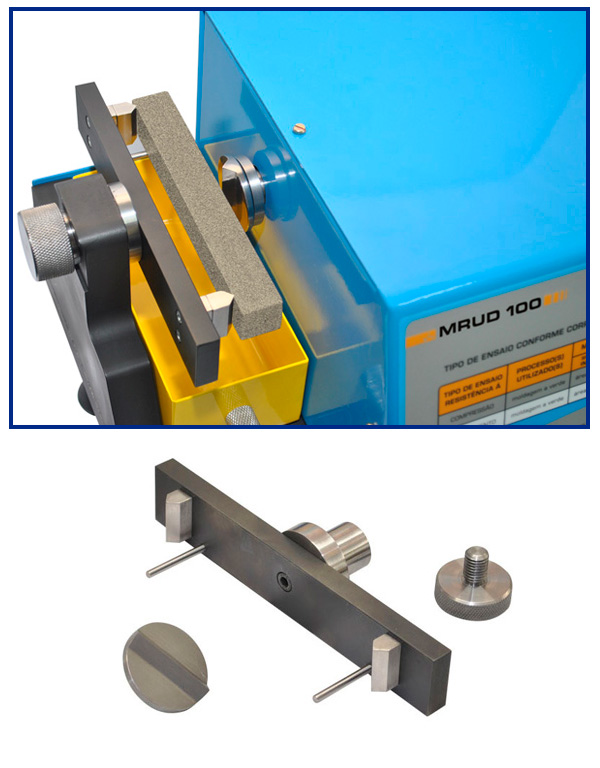

Model AM06

TRANSVERSE CORE STRENGTH ACCESSORY

Used in the model MRUD Electronic Universal Sand Strength Machine

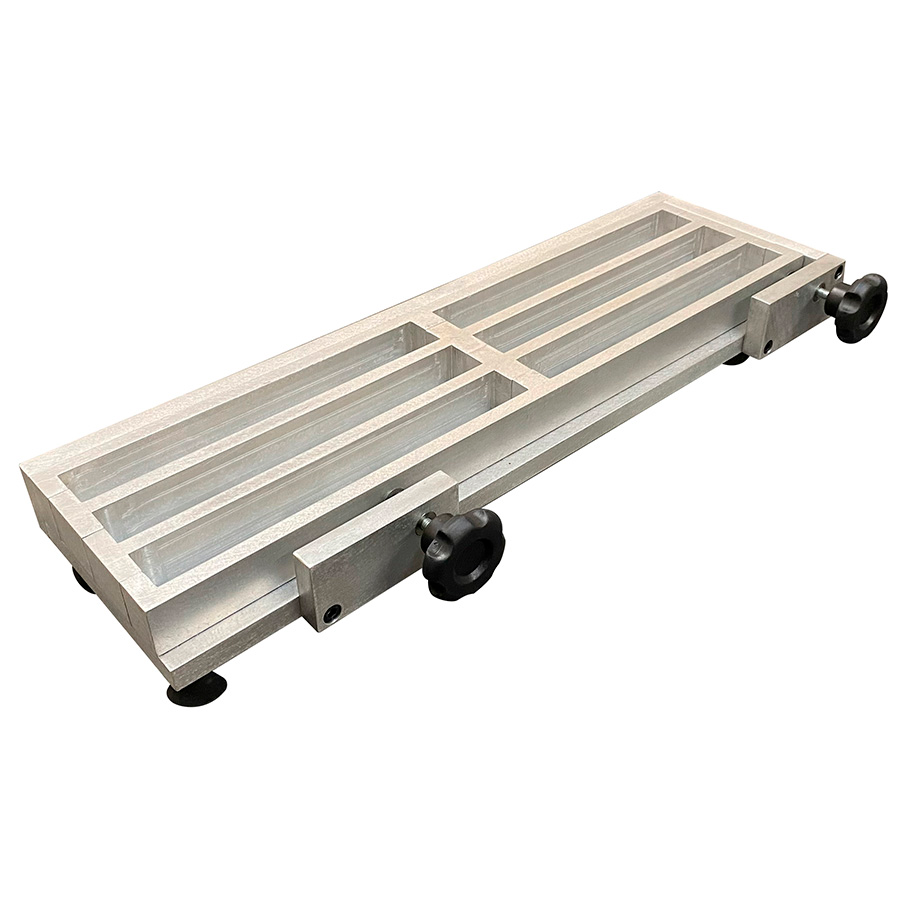

MODEL AM08F

SPECIFICATIONS

TENSILE CORE BOX FLEXION ACCESSORY

This multiple-cavity tensile core box is uded to make standar tensile sand specimens bonded with air set , gassing or core oil type blinders. Prepares 8 tensile especimens or 6 core transverse strenght.

TESTING STANDARS

AFS Standars: 1″ (25,4 mm) thick
Metric Standars: 22,4 mm thick

MODEL DVG-E

SPECIFICATIONS

This device serves to measure the gas pressure and, indirectly, the gas volume (the sum of all gasses) on various foundry materials. With a special software (included) the pressure diagram can be displayed on a computer.

Fully electronic equipment indicating via IHM with temperature control, pressure and test time
Digitals controls:
– Gas pressure range: 0 -250 mbar (0 – 3,60 psi)
– Test temperature: 0 to 1100° C
Cylindrical furnace with metal resistors and isolated with ceramic blanket.
Nitrogen gas required: 2 -4 bar (28 – 56 psi)
Power requirements: 220 V / 50-60 Hz / 1500 w
Dimensions: 35 x 80 x 80cm
Weight: 45 kg (99 lb)

Model PER-e

ELECTRONIC PERMMETER

SPECIFICATIONS

ACESSORIES

AP01 | AP04

Model AEP

LABORATORY SIFTER

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model JP

SAND TESTING SIEVES

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model MM

SAND RAMMER

SPECIFICATIONS

ACESSORIES

AM04 | AM03 | BM

MODEL PER-E

SPECIFICATIONS

For determination the permeability of clay and/or chemically bonded sand specimens.

Measuring range: 0 – 999 cm4/g.min. (AFS)
Range resolution: 0,1 cm4/g.min. (AFS)
Uses Metric ou AFS specimens
Calibration standard included
Power requirements: 230 V / 50-60 Hz
Dimensions: 26 x 54 x 40cm
Weight: 22 kg (48 lb)

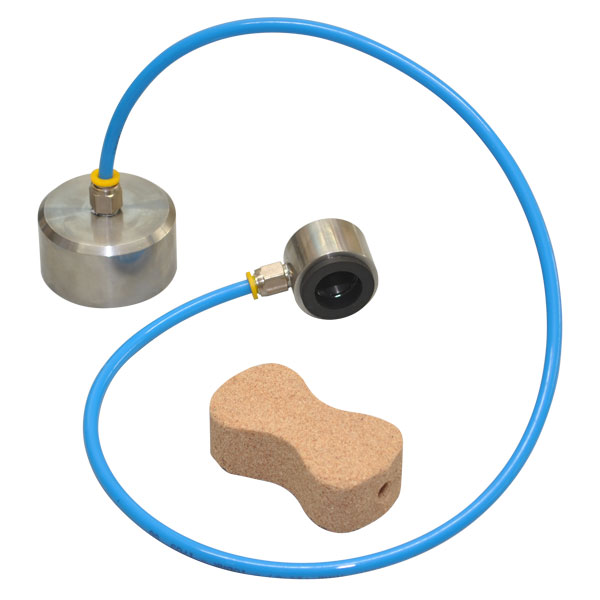

Model AP01

MOLD PERMEABILITY ACCESSORY

This accessory measures the permeability of an actual production mold or core. Used in the model PER Digital Permmeter

MODEL AEP

SPECIFICATIONS

Electro-magnetic vibration sieve machine for the determination of the grain distribution by screening the dried, fine-free sand.

Timer with automatic shutoff.
Electromechanical vibration system with intensity control
Power requirements: 220 V / 50-60 Hz
Weight: 58 kg ( 127,6 lb)

SIEVES NOT INCLUDED

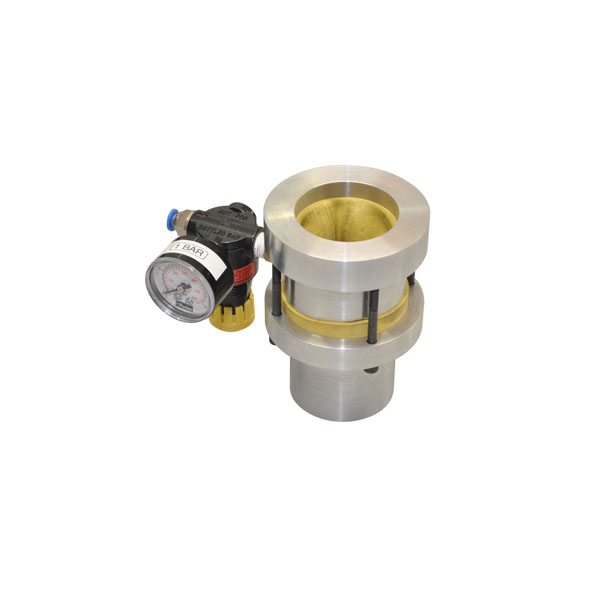

Model AP04

CORE PERMEABILITY ACCESSORY

This accessory measures the permeability of core sand samples. Maximum pneumatic sealing: 1bar

The Core permeability specimen is made in:

Sand Rammer Model MM or;

Blower Specimen Apparatus Model MSL

Used in the model PER Digital Permmeter.

MODEL JP

SPECIFICATIONS

SAND TESTING SIEVES

A nest of 11 AFS sand testing sieves for determining the AFS Grain Fineness Number and distribution of molding and core sands. Included are U.S.A. sieves nº 6, 12, 20, 30, 40, 50, 70, 100, 140, 200 and 270.

Model AM04

TENSILE CORE BOX STRENGTH ACCESSORY

Used with the Sand Rammer, Model MM, to make standar tensile sand specimens bonded with air set , gassing or core oil type blinders.

TESTING STANDARS

AFS Standars: 1″ (25,4 mm) thick

Metric Standars: 22,4 mm thick

MODEL MM

SPECIFICATIONS

Used to prepare specimens for many standar tests and for compactability test of foundry sands.

Measuring range: 20 – 100 %
Range resolution: 1 %
Constructed of cast iron and movable parts of stainless steel
Direct readind scale
Includes specimen tube and conditioner.
Weight: 30 kg (66 lb)

Base casting not included

Model AM03

TRANSVERSE CORE BOX STRENGTH ACCESSORY

Used with the Sand Rammer, Model MM, to make standar transverse sand specimens bonded with air set , gassing or core oil type blinders.

TESTING STANDARS

AFS Standars: 1″ x 1″ x 8″ (25,4 x 25,4 x 203,2mm)
Metric Standars: 22,4 x 22,4 x 172,4 mm

Model BM

BASE OF THE RAMMER

Model MRCD

DIGITAL DILATOMETER

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model AGCP

AUTOMATIC CO2 GASSING APPARATUS

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model DAG

MOULD GASADOR

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

Model MACOP

PAINT OF SPECIMENS APPARATUS

SPECIFICATIONS

ACESSORIES

WITHOUT ACESSORIES

MODEL MRCD

SPECIFICATIONS

For determination of the hot compression strength, hot collapsibility and hot deformation

Hot compression strength
Measuring range: 0 – 320 N/cm2 (resolution 0,1 N/cm2)
Hot deformation
Measuring range: 0 – 9,999mm (resolution 0,001mm)
Furnace temperature range: 0 – 1200°C (resolution 1°C)
Power requirements: 230 V / 50-60 Hz (900W)
Compressed air required: 6 bar (85 psi)
Weight: 100 kg (220 lb)

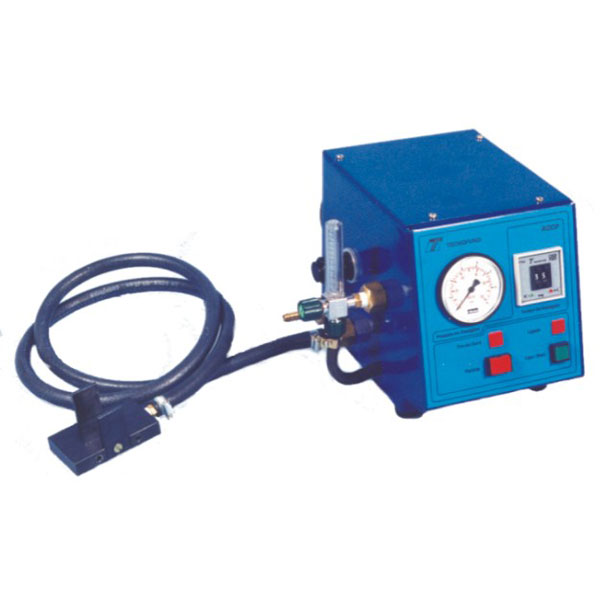

MODEL AGCP

SPECIFICATIONS

Performs gassing of compressive, transverse and tensile core specimens.

Maximum gas pressure: 7 bar (90 psi)
Digital control of time: 0 – 999 sec.
Flow gas regulator: 0 – 15 l/min.
Power requirements: 220 V / 50-60 Hz
Weight: 4 kg (8.8 lb)

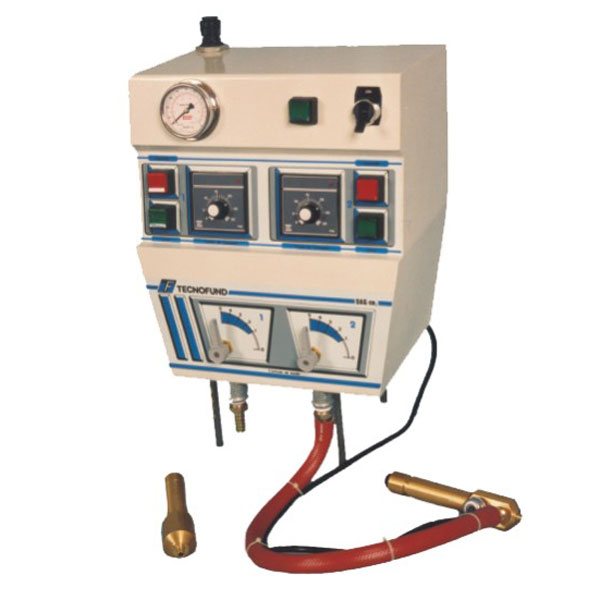

MODEL DAG

SPECIFICATIONS

This equipment control of CO2 gas-cured molding sand.

Gassing needle with 2 or 4 outputs
Installation on column
Controls the pressure and flow of gas, and controls the time of gassing with automatic shutoff
Power requirements: 220 V / 50-60 Hz
Weight: 18 kg (40 lb)

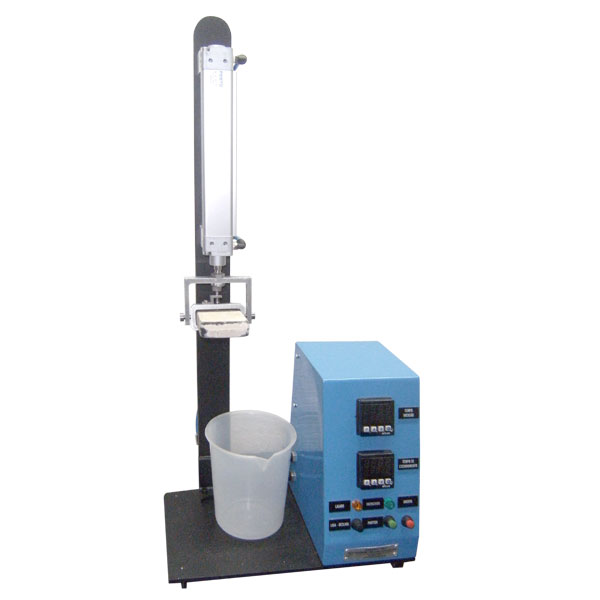

MODEL MACOP

SPECIFICATIONS

Used to paint specimens sand withs uniform motion. Immersion time and draining programmable.

Range of timers: 0 to 99,9 sec.
Auto rotate the specimen
Power requirements: 220 V / 50-60 Hz
Includes jar for painting
Weight: 15 kg (33 lb)
