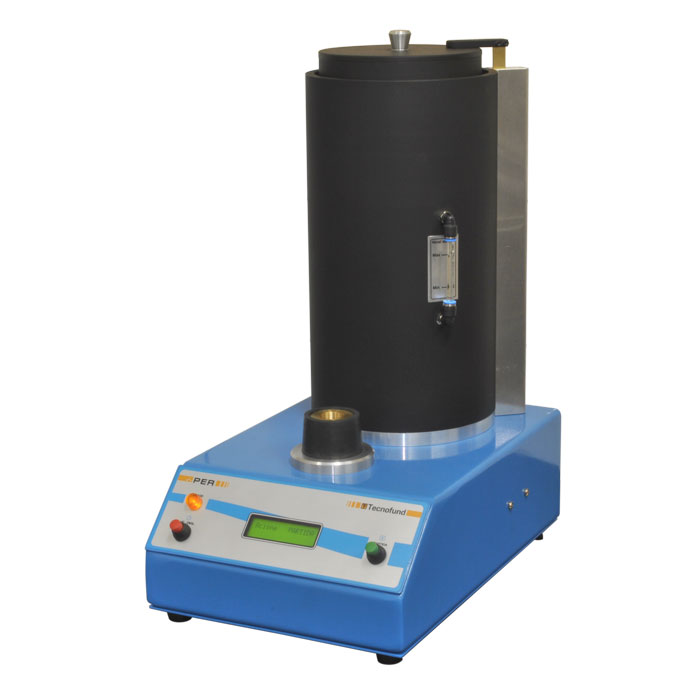

Model PER

DIGITAL PERMMETER

For determination the permeability of clay and/or chemically bonded sand specimens

SPECIFICATIONS

  • Measuring range: 0 – 999 cm4/g.min. (AFS)
  • Range resolution: 0,1 cm4/g.min. (AFS)
  • Uses Metric ou AFS specimens
  • Calibration standard included
  • Power requirements: 230 V / 50-60 Hz
  • Compressed air required: 2 bar (28 psi)
  • Weight: 26 kg (57 lb)
PROCESS OF SAND MOLD AND CORE SAND TESTS EQUIPMENTS (MODELS)
PERFORMS THE TEST ACCESSORIES AUXILIARY ESPECIMEN PREPARATION
CLAY BONDED MOULDING SANDS PERMEABILITY PER ECP MM
MOLD PERMEABILITY PER AP01 –
UNBONDED SANDS PERMEABILITY PER AP03 and ECP MM
CHEMICALLY-BONDED SELF-SETTING SANDS CORE PERMEABILITY PER AP01 or AP04 MM
HOT-BOX MIXES SANDS CORE PERMEABILITY PER AP02 MSL HB or HC
COLD BOX MIXES SANDS CORE PERMEABILITY PER AP02 MSL CB or HC
SHELL MOLDING SANDS CORE PERMEABILITY PER AP02 AM05 p
GAS-CURED MOLDING SANDS CORE PERMEABILITY PER AP04 AGCP and MM
