Foundry Equipment

Sample Preparation

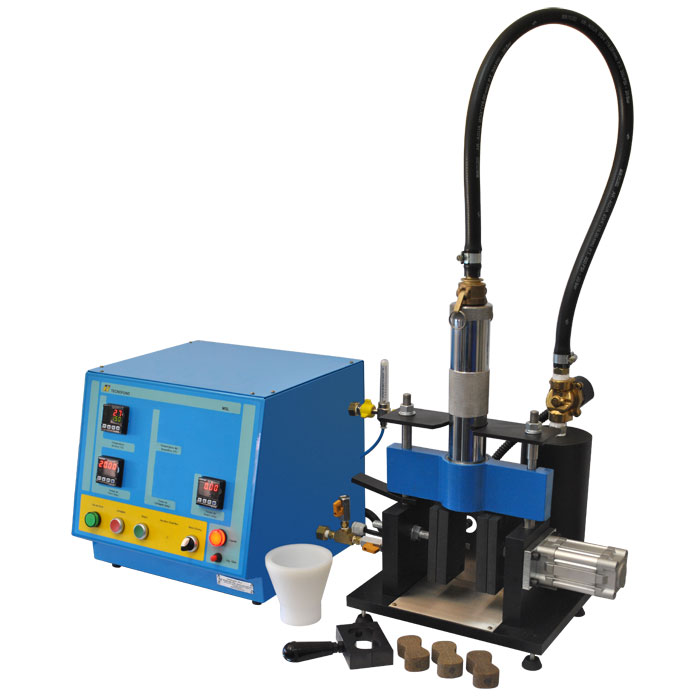

Model MSL HB

BLOWER SPECIMEN APPARATUS

Blow and cures specimens of hot box mixes

SPECIFICATIONS

  • Digitals controls:
    – cure timer range: 0 – 99,9 sec.
    – blow timer range: 0 – 9,99 sec.
    – cure temperature range: 0-450,0 C
  • Controls the pressure blow
  • Compressed air required: 4 – 6 bar (56 – 85 psi)
  • Power requirements: 230 V / 50-60 Hz
  • Weight: 40 kg ( 88 lb)
  • Includes a Tensile box
  • Range: One Specimen
PROCESS OF SAND MOLD AND CORE SAND TESTS EQUIPMENTS (MODELS)
PERFORMS THE TEST ACCESSORIES AUXILIARY ESPECIMEN PREPARATION
HOT-BOX MIXES SANDS TENSILE STRENGTH DAP AD03 MSL HB or HC
TRANSVERSE STRENGTH DAP AD02 MSL HB or HC
CORE PERMEABILITY PER AP02 MSL HB or HC
