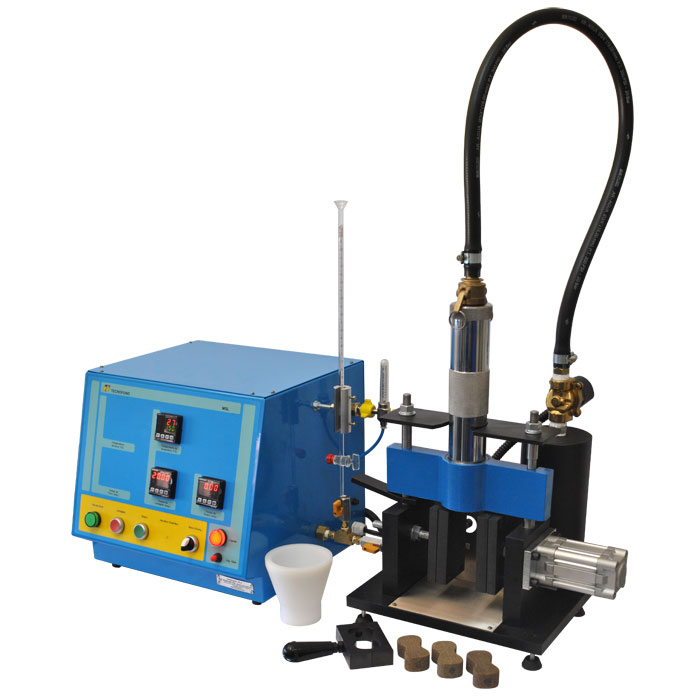

Model MSL CB

BLOWER SPECIMEN APPARATUS

Blow and gas-cures specimens of cold box mixes

SPECIFICATIONS

  • Digitals controls:
    – air purge timer range: 0 – 99,9 sec.
    – blow timer range: 0 – 9,99 sec.
    – amine gas temperature range: 0-90,0 C
  • Controls the pressure and flow of amine gas
  • Graduated burette for amine gas
  • Compressed air required: 4 – 6 bar (56 – 85 psi)
  • Power requirements: 230 V / 50-60 Hz
  • Weight: 45 kg (99 lb)
  • Includes a Tensile box
  • Range: One Specimen
PROCESS OF SAND MOLD AND CORE SAND TESTS EQUIPMENTS (MODELS)
PERFORMS THE TEST ACCESSORIES AUXILIARY ESPECIMEN PREPARATION
COLD BOX MIXES SANDS TENSILE STRENGTH DAP AD03 MSL CB or HC
TRANSVERSE STRENGTH DAP AD02 MSL CB or HC
COMPRESSIVE STRENGTH DAP 2T – MSL CB
CORE PERMEABILITY PER AP02 MSL CB or HC
