Foundry Equipment

Test Instruments for Moulding and Core Sands

Model MRTQ-S

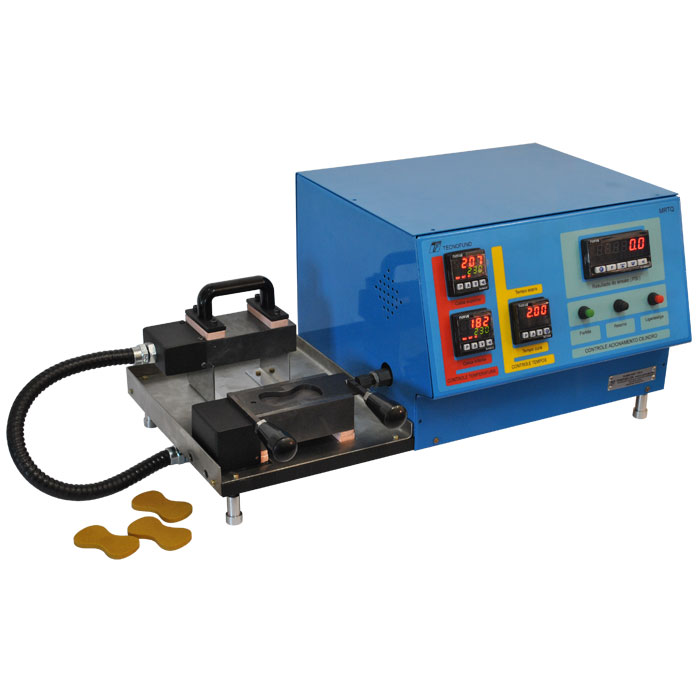

SHELL MOULD TESTER

This test machine measures the hot tensile strength of shell molding specimens

SPECIFICATIONS

  • Measuring range: 0 – 6000 N/cm2 (0 – 850 psi)
  • Range resolution: 0,1 N/cm2 (0,1 psi)
  • Temperatura control: 0 to 760 C
  • Cure timer: 0 to 9,99 min.
  • Power requirements: 230 V / 50-60 Hz (820 W)
  • Compressed air required: 6 bar (85 psi)
  • Weight: 48 kg (106 lb)
PROCESS OF SAND MOLD AND CORE SAND TESTS EQUIPMENTS (MODELS)
PERFORMS THE TEST ACCESSORIES AUXILIARY ESPECIMEN PREPARATION
SHELL MOLDING SANDS HOT TENSILE STRENGTH MRTQ-S – –
