Foundry Equipment

Test Instruments for Moulding and Core Sands

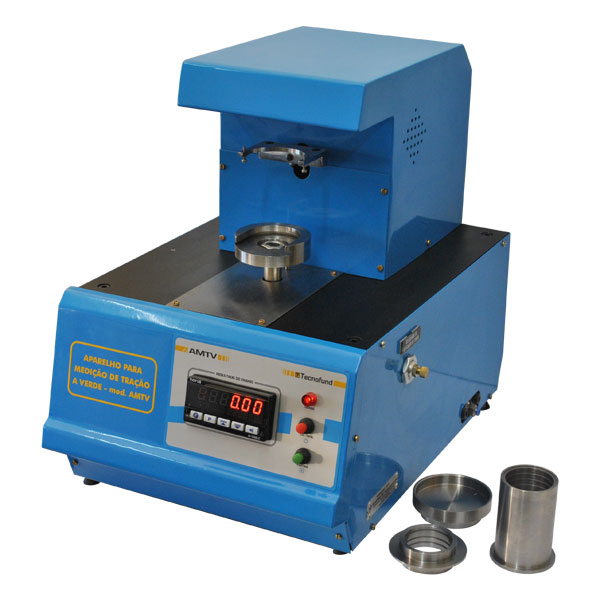

Model AMTV

DIGITAL TENSILE STRENGTH TESTING

Performs the tensile strength testing for the evaluation of bentonit e moulding sands

SPECIFICATIONS

  • Measuring range: 0 – 3,00 N/cm2
  • Range resolution: 0,01 N/cm2
  • Cylindrical standard test specimens AFS ou Metric
  • Power requirements: 220 V / 50-60 Hz
  • Compressed air required: 4 – 6 bar (56 – 85 psi)
  • Weight: 40 kg ( 88 lb)
PROCESS OF SAND MOLD AND CORE SAND TESTS EQUIPMENTS (MODELS)
PERFORMS THE TEST ACCESSORIES AUXILIARY ESPECIMEN PREPARATION
CLAY BONDED MOULDING SANDS GREEN TENSILE STRENGTH AMTV ECP MM
