Foundry Equipment

Test Instruments for Moulding and Core Sands

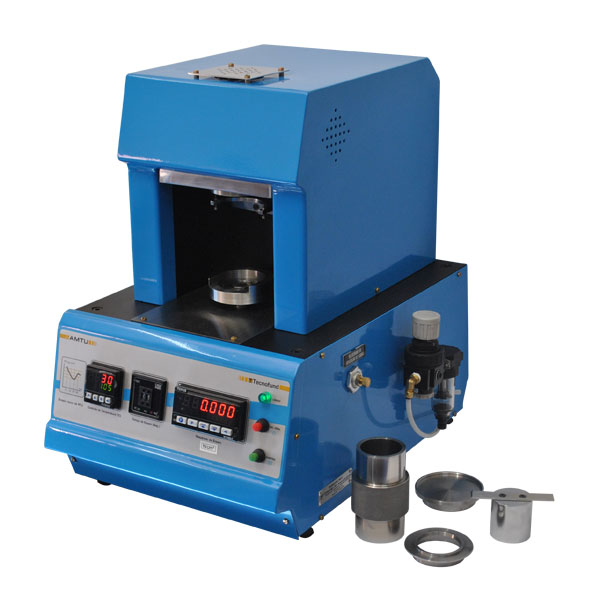

Model AMTU

WET TENSILE STRENGHT TESTING

Performs the wet tensile strength testing for the evaluation of bentonit e moulding sands

SPECIFICATIONS

  • Measuring range: 0 – 0,600 N/cm2
  • Range resolution: 0,001 N/cm2
  • Heating Temperature: 300°C / 400w
  • Cylindrical standard test specimen AFS ou Metric
  • Includes a calibration standard
  • Power requirements: 220 V / 50-60 Hz
  • Compressed air required: 4 – 6 bar (56 – 85 psi)
  • Weight: 45 kg (99 lb)
PROCESS OF SAND MOLD AND CORE SAND TESTS EQUIPMENTS (MODELS)
PERFORMS THE TEST ACCESSORIES AUXILIARY ESPECIMEN PREPARATION
CLAY BONDED MOULDING SANDS WET TENSILE STRENGTH AMTU ECP MM
