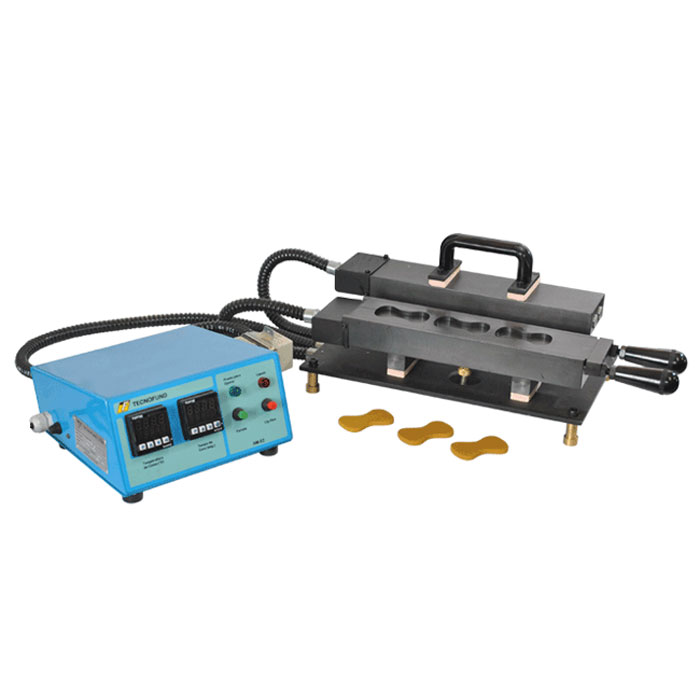

Model AM05

HEATED SHELL CURING ACCESSORY

For curing tensile, transverse and permeability shell specimens.

SPECIFICATIONS

  • Digitals controls:
    – cure timer: 0 to 99,9 minutes
    – test temperature: 0 to 450 C
  • Power requirements: 220 V / 50-60 Hz
  • Weight: 23 kg (51 lb)

TESTING STANDARS

  • AFS Standars
    – Tensile Pattern – 1/4 ” (6,35  mm) thick
    – Transverse Pattern – 1/4″ x 1″ x 4″
    – Permeability Pattern  – 2″ x 1/4″
  • Metric Standars
    – Tensile Pattern – 7,8 mm thick
    – Permeability Pattern  – 26 mm x 8 mm
PROCESS OF SAND MOLD AND CORE SAND TESTS EQUIPMENTS (MODELS)
PERFORMS THE TEST ACCESSORIES AUXILIARY ESPECIMEN PREPARATION
SHELL MOLDING SANDS TENSILE STRENGTH MRUD AM07 AM05
TRANSVERSE STRENGTH MRUD AM06 AM05 F
CORE PERMEABILITY PER AP02 AM05 P
